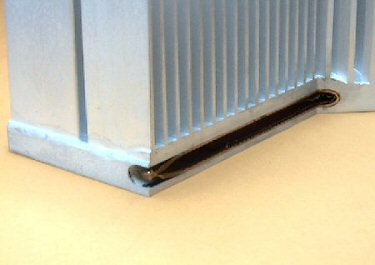

Shown is a cross section of a heat pipe heat sink. The heat pipe is inserted into the base of the heat sink for improved heat transfer and greater heat dissipation. The hole for the heat pipe is a 4 x 7.5mm oval 130mm in length. The precision of the hole is +/-0.02mm and the interior is mirror-smooth. The hole can be of virtually any shape and number.
