Push Pin
| Model | Memo |
|---|---|
| PIP3.175X9.8[TH] PIP3.175X11[TH] PIP3.175X11.5 PIP3.175X14.3 PIP3.175X18.8 PIP3.175X20.3 |
Push-pins provide mechanical heat sink attachment.
Several standard sizes of push-pins are available. Alpha can provide the
total
design, including springs, push-pins and thermal interface material. |
Clip and Backing Plate
Please click on model name/number to see a picture of the item.
| Model | Socket | Heat Sink | |
|---|---|---|---|
| Z-shaped clip · Z-CL35.5X48.2 · Z-CL35.5RX48.2 · Z-CL44.9X53.5 · Z-CL44.9RX53.5 · Z-CL48.2X60.9 · Z-CL48.2RX60.9 · Z-CL55.8X60.9 · Z-CL47.5Rx76.2 |
For Chipset Please visit Z-shaped clip for details |
Generally, Z-Clips should only be used for heatsinks smaller than 60mm square base size. Please click here for details. |
|

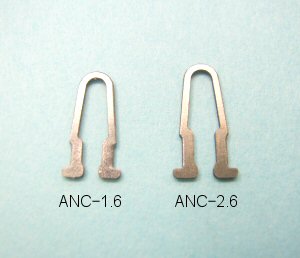

| ANC-1.6 ANC-2.6 | Solderless anchor for Z-shaped clip Please click here for details. |
Can be used with Z-shaped clip | |

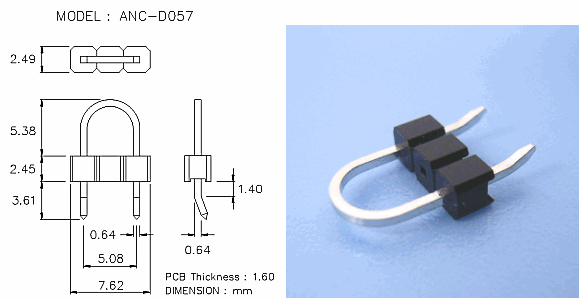

| ANC-D057 | Solder anchor for Z-shaped clip Please click here for details. |
||
| CL57G | For Socket 5, 7, 370, 462 | PAL Series, P5060 Series (,FC-PAL Series , PFH Series) |
|
| CL57GT | For Socket 370 | PAL6030/35 (Scoket370+FC-PGA2) | |
| CL57H2 | For Socket 5, 7, 370,462 | PEP66 Series | |
| CL57HT | For Socket 370 | PEP66 (Scoket370+FC-PGA2) | |
| CL57L1 | For Socket 370,462 | PAL153 , U60C/U60 , PAL14(FC-PGA2) | |
| CL57LT | For Socket 370 (FC-PGA2) | UBC60/UB60,U60/U60C,PAL153 (Scoket370+FC-PGA2) | |
| BP81OV | Opteron, Athlon64FX/64 ( Socket 940, 939, 754 ) Backing plate |
PAL8150, U81C | |
| CLP4X(SET) | Intel Xeon (Except for Nocona core) ( Socket 603, 604 ) |
U6489C-23/25, PAL6489-25/35 | |
| XEON_RTN(SET) | Intel Xeon (Except for Nocona core) ( Socket 603, 604 ) |
U6489C-23/25, PAL6489-25/35 | |
| CEK771-SPRING | Intel Xeon ( Socket 771 ) |
U8090C2, L8090C2 | |
| CEK-SPRING | Intel Xeon ( for Nocona core ) ( Socket 604 ) |
U8090C, L8090C | |
| MTGH81S | For Socket 940, 939, 754 | PAL8150, U81C | |
| MTGH89S | For Socket 478 | PAL8942 | |
| MTGH-SPL80S *2 | For Socket 462 (To attach heat sink using standoffs) | S-PAL8045/55 (PAL8045) |
|

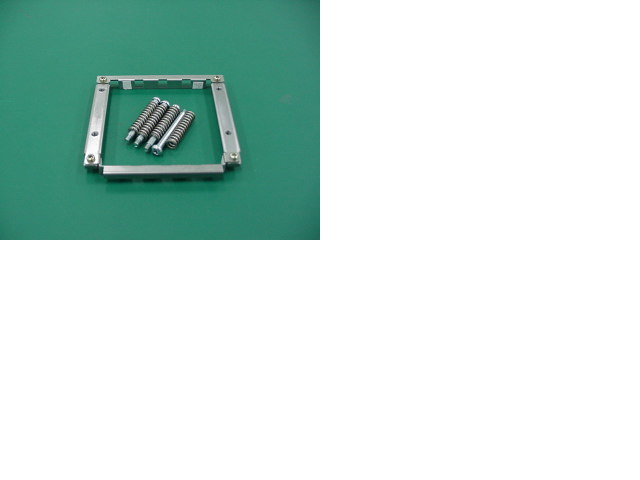

| FLG462 *1 | For Socket 462 (To attach heat sink using socket lugs)(Assy Pic) | S-PAL8045/55 | |
| Remarks *1 | The FLG462 mounting bracket is not compatible with the PAL8045 due to interference with base features. S-PAL8045/55 use only. (Remarks.) | ||
| *2 | All items included with the MTGH-SPL80S kit are
metric and incompatible with the hardware included with the MTGH80S
(inch) hardware kit for the original PAL8045. Do not mix hardware
components from these two hardware kits. S-PAL8045, 8055 with MTGH-SPL80S: Installation Guide (X001ZF21.pdf 707KB) PAL8045 with MTGH-SPL80S: Installation Guide (X001ZF22.pdf 625KB) |
||
Intake Cover , Fan motor mounting kit , etc..
Please refer to the heat sink specifications for details regarding these individual components.| Model | Heat Sink | Memo |
|---|---|---|
| CT 607 | FH6020 | Includes separate spacers |
| CT 6011 | FH6030,PAL6030 | Spacer incorporated into the intake cover design |
| CT 6016 | PAL6035 | Spacer incorporated into the intake cover design |
| CT 808 | FH8025 | Includes separate spacers |
| CT 8017A | FH8040 | Spacer incorporated into the intake cover design |
| CT 80S | S-PAL8045 | Spacer incorporated into the intake cover design |
| CT 80L | S-PAL8055 | Spacer incorporated into the intake cover design |
| CT 8125 | PAL8150 | Spacer incorporated into the intake cover design |
| CT 8917 | PAL8942 | Spacer incorporated into the intake cover design |
| CT 8925 | S-PAL8952 | Spacer incorporated into the intake cover design |
| CT 908 | FH9025 | Includes separate spacers |
| CT 9017 | FH9040 | Includes separate spacers |
| CT 1008 | FH10025, FHC10025 | Includes separate spacers |
| CT 10017 | FH10040, FHC10040 | Includes separate spacers |
| CS 61 | PEP66 |
