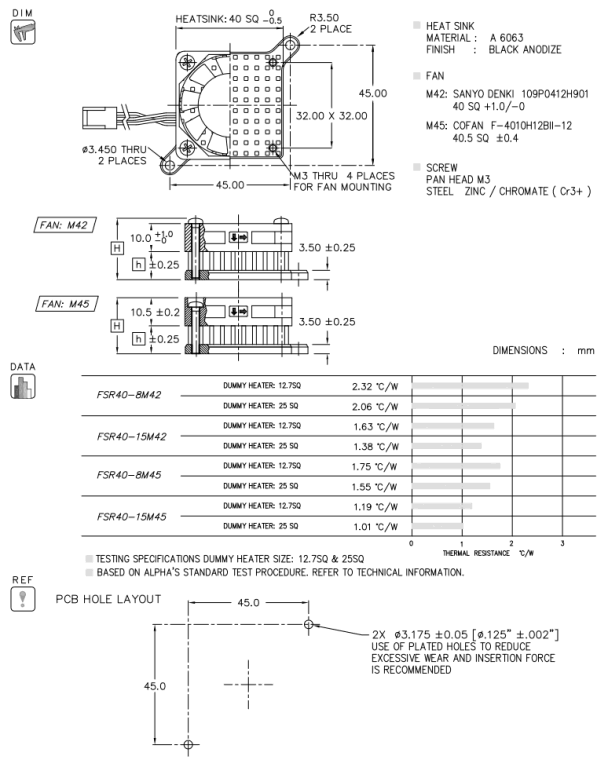

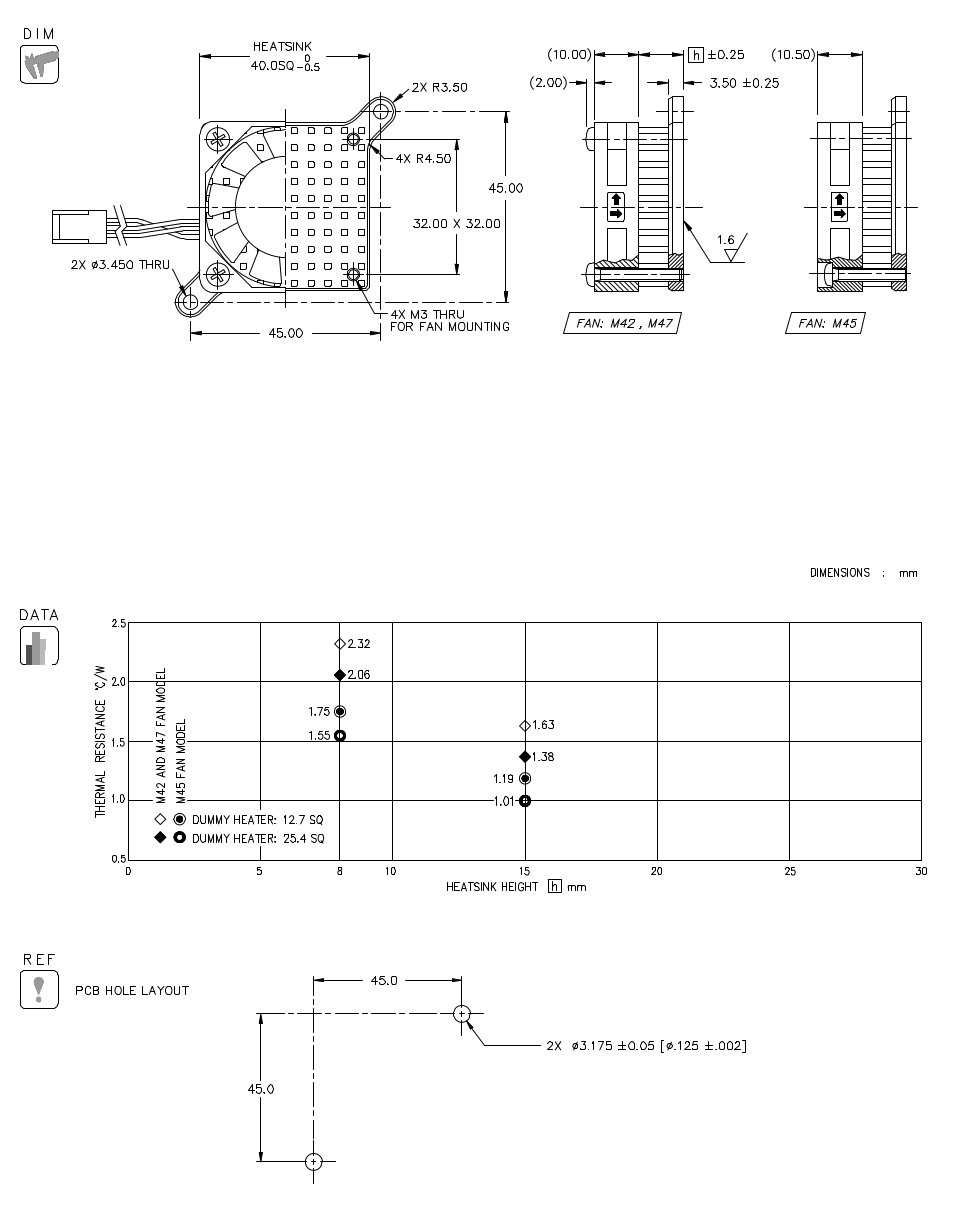

FSR40 SPECIFICATION & THERMAL DATA

Heat Sink only	Code No	Model Name	Height h(mm)	Weight(g)	Online Shopping
	S089DG04	FSR40-8B	8	18.0	Start Online Shopping
	S089DG03	FSR40-15B	15	21.5	Start Online Shopping

Fan Assembly	Code No	Model Name	Height H(mm)	Weight(g)	Online Shopping
	S089DG08	FSR40-8M42	21.0	42.3	Start Online Shopping
	S089DG07	FSR40-15M42	28.0	47.0	Start Online Shopping
	S089DG09	FSR40-8M45	19.0	41.8	Start Online Shopping
	S089DG0A	FSR40-15M45	26.0	46.5	Start Online Shopping

All Assembly	Basic Model Number	Assembly (With push pins, springs, thermal interface)
	FSR40-8M42
	FSR40-15M42
	FSR40-8M45
	FSR40-15M45

• HEAT SINK
  MATERIAL : A6063
  FINISH : BLACK ANODIZE
• FAN
  M42 : SANYO DENKI 109P0412H901
  40 SQ +1.0/-0
  M45 : COFAN F-4010HH12BⅡ-3P9
  40.5 SQ ±0.4
• SCREW
  PAN HEAD M3
  STEEL ZINC / CHROMATE (Cr3+)

• TESTING SPECIFICATIONS DUMMY HEATER SIZE: 12.7 SQ & 25 SQ

• BASED ON ALPHA'S STANDARD TEST PROCEDURE. REFER TO TECHNICAL INFORMATION.
