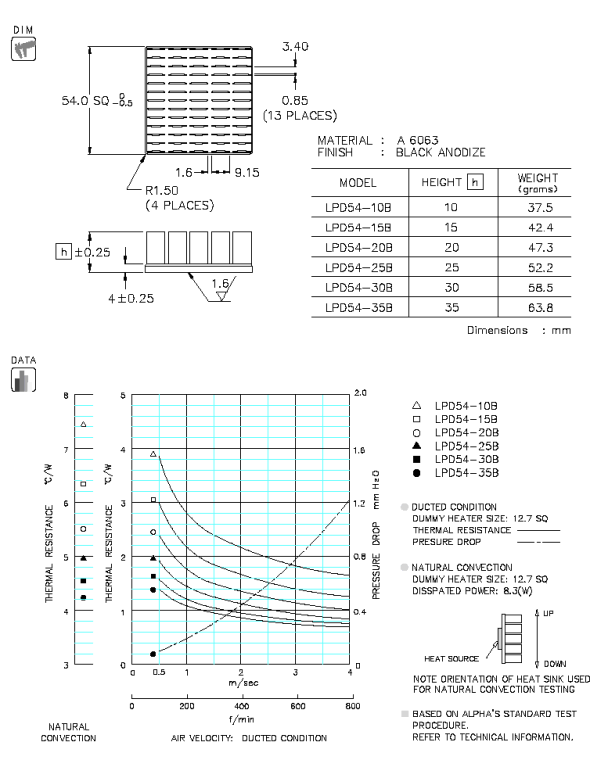

LPD54 SPECIFICATION & THERMAL DATA
| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | Option | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| LPD54-10B | 10 | 4.0 | 37.5 |
  RoHS  DXF |
STEP | IGES |
|
Introduce attachment option for the heat sink. |
Minimum Order:1 piece Lead-time:2 weeks Specify fin height, base size or holes/tapped holes |
|
| LPD54-15B | 15 | 42.4 | STEP | IGES | ||||||
| LPD54-20B | 20 | 47.3 | STEP | IGES | ||||||
| LPD54-25B | 25 | 52.2 | STEP | IGES | ||||||
| LPD54-30B | 30 | 58.5 | STEP | IGES | ||||||
| LPD54-35B | 35 | 63.8 | STEP | IGES | ||||||
Select Height |
--- | --- |
||||||||
Dimension :mm
