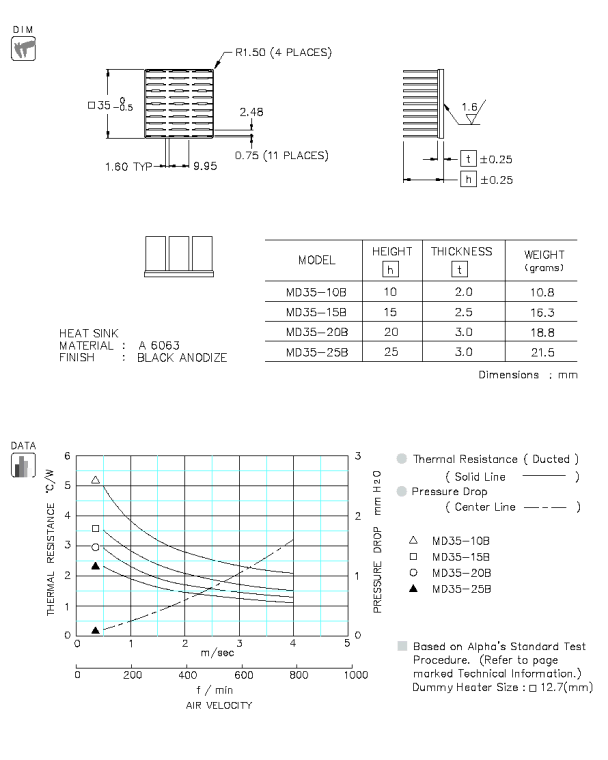

MD35 SPECIFICATION & THERMAL DATA
| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | Option | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| MD35-10B | 10 | 2.0 | 10.8 |
  RoHS  DXF |
STEP | IGES |
Quantity
pcs.
|
Introduce attachment option for the heat sink. |
Minimum Order:1 piece Lead-time:2 weeks Specify fin height, base size or holes/tapped holes |
|
| MD35-15B | 15 | 2.5 | 16.3 | STEP | IGES | |||||
| MD35-20B | 20 | 3.0 | 18.8 | STEP | IGES | |||||
| MD35-25B | 25 | 21.5 | STEP | IGES | ||||||
Select Height |
--- | --- |
||||||||
Dimension :mm
