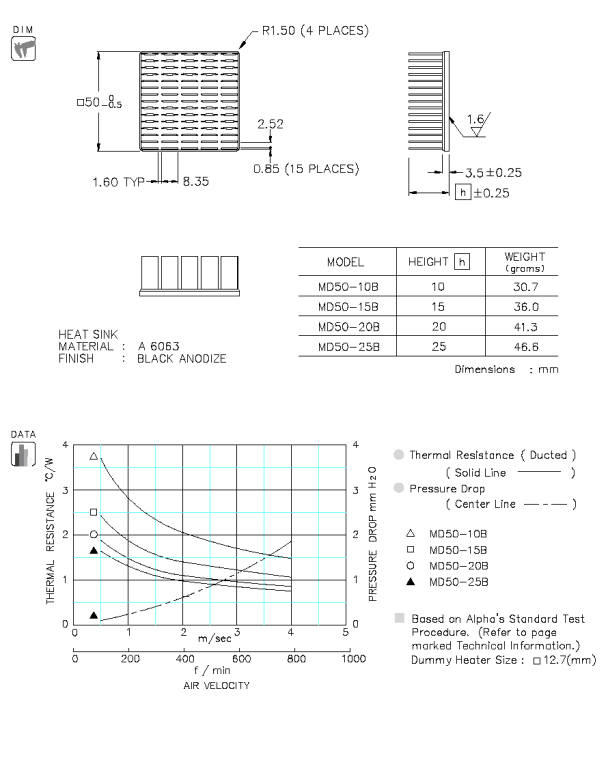

MD50 SPECIFICATION & THERMAL DATA
| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | Option | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| MD50-10B | 10 | 3.5 | 30.7 |
  RoHS  DXF |
STEP | IGES |
|
Introduce attachment option for the heat sink. |
Minimum Order:1 piece Lead-time:2 weeks Specify fin height, base size or holes/tapped holes |
|
| MD50-15B | 15 | 36.0 | STEP | IGES | ||||||
| MD50-20B | 20 | 41.3 | STEP | IGES | ||||||
| MD50-25B | 25 | 46.6 | STEP | IGES | ||||||
Select Height |
--- | --- |
||||||||
Dimension :mm
