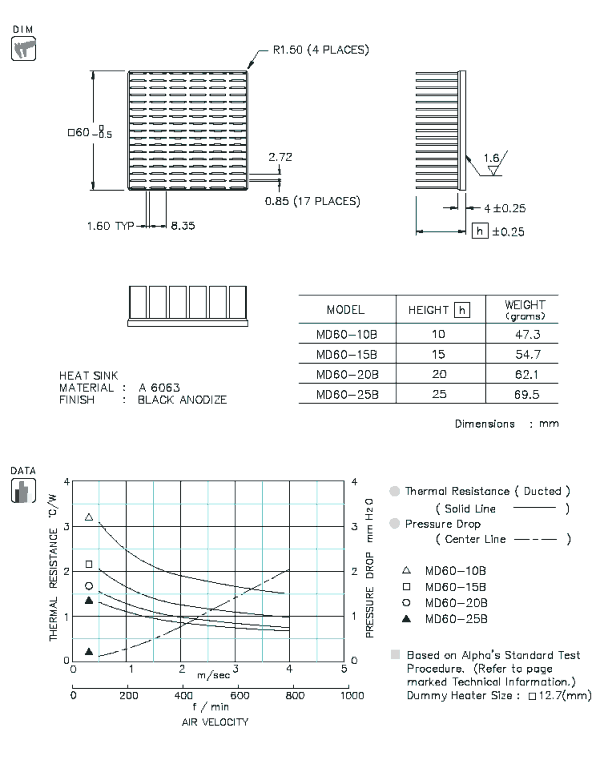

MD60 SPECIFICATION & THERMAL DATA
| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | Option | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| MD60-10B | 10 | 4.0 | 47.3 |
  RoHS  DXF |
STEP | IGES |
Quantity
pcs.
|
Introduce attachment option for the heat sink. |
Minimum Order:1 piece Lead-time:2 weeks Specify fin height, base size or holes/tapped hole |
|
| MD60-15B | 15 | 54.7 | STEP | IGES | ||||||
| MD60-20B | 20 | 62.1 | STEP | IGES | ||||||
| MD60-25B | 25 | 69.5 | STEP | IGES | ||||||
Select Height |
--- | --- |
||||||||
Dimension :mm
