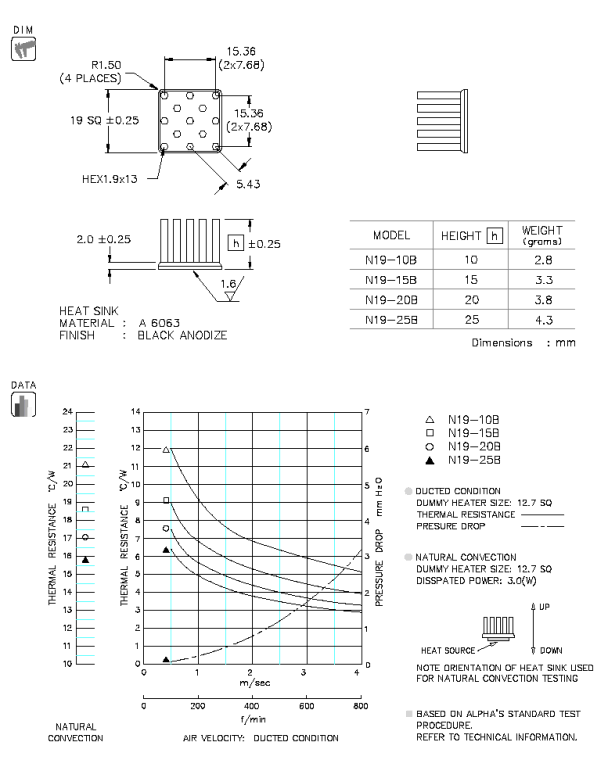

N19 SPECIFICATION & THERMAL DATA
| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shoppin | Option | |||
|---|---|---|---|---|---|---|---|---|---|
| N19-10B | 10 | 2.0 | 2.8 |
  RoHS  DXF |
STEP | IGES |
Quantity
pcs.
|
Introduce attachment option for the heat sink. |
|
| N19-15B | 15 | 3.3 | STEP | IGES | |||||
| N19-20B | 20 | 3.8 | STEP | IGES | |||||
| N19-25B | 25 | 4.3 | STEP | IGES | |||||
Select Height |
--- | --- |
|||||||
Dimension :mm
