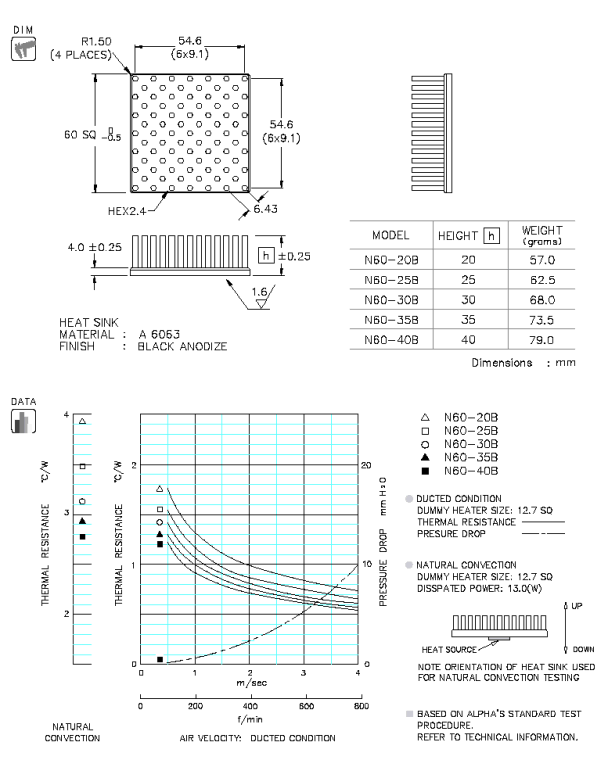

N60 SPECIFICATION & THERMAL DATA
| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | Option | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| N60-20B | 20 | 4.0 | 57.0 |
  RoHS  DXF |
STEP | IGES |
Quantity
pcs.
|
Introduce attachment option for the heat sink. |
Minimum Order:1 piece Lead-time:2 weeks Specify fin height, base size or holes/tapped holes |
|
| N60-25B | 25 | 62.5 | STEP | IGES | ||||||
| N60-30B | 30 | 68.0 | STEP | IGES | ||||||
| N60-35B | 35 | 73.5 | STEP | IGES | ||||||
| N60-40B | 40 | 79.0 | STEP | IGES | ||||||
Select Height |
--- | --- |
||||||||
Dimension :mm
