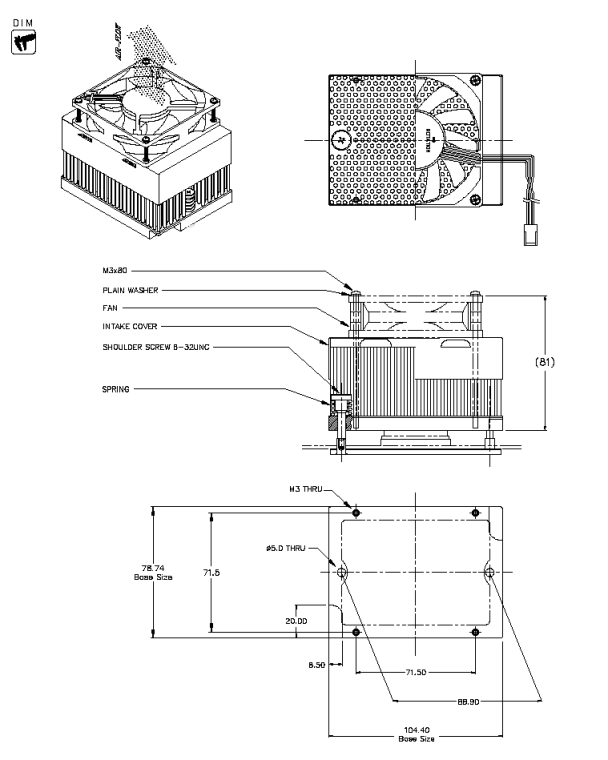

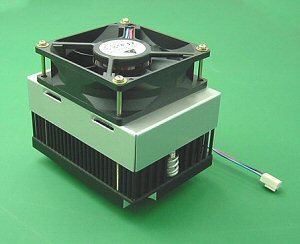

PAL8150M81----- 80x25mm 47CFM Fan Thermal Resistance (Rsa) <FAN : Expulsion> 0.185 deg C/W Testing specification:Dummy Heater Size : 31mm sq / Fan Spec. : In the following table PAL8150M81 Overall Height 81 ( mm ) Weight 715 ( grams ) HEAT SINK Material 6063 Aluminum Finish Black Anodized Embedded Copper 1100 or 1020 Size 79x105x50 height FAN SPEC. Dimension 80mm sq. x 25.4mm Voltage 12 ( DCV ) Current AMP 0.34 ( A ) Speed 4000 ( RPM ) Max. Air Flow 1.32 46.62 ( m3/min ) ( CFM ) Max. Air Pressure 6.78 .267 ( mmAq ) ( IN Aq ) Noise Level 40 ( db[A] ) Vendor DELTA ELECTRONICS Model Number AFB0812SH-F00 Alpha Fan Model# M81 End of PAL8150M81 Spec.

back to top

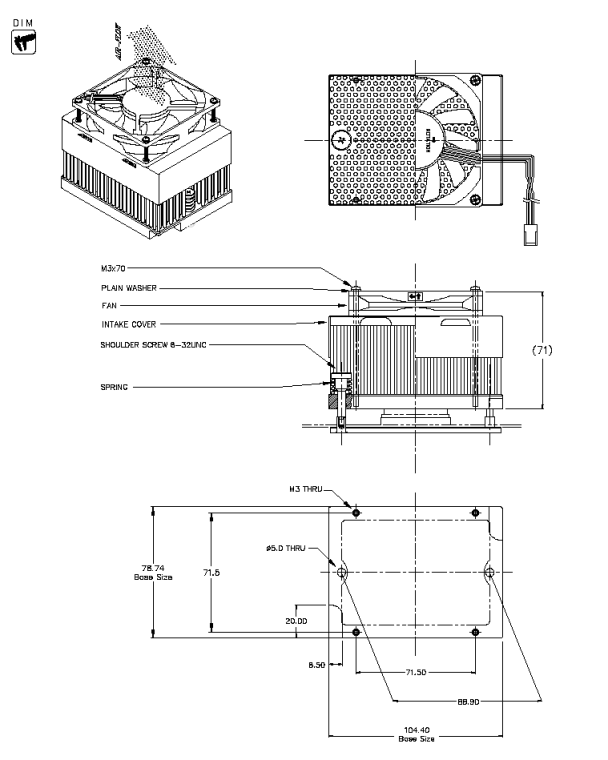

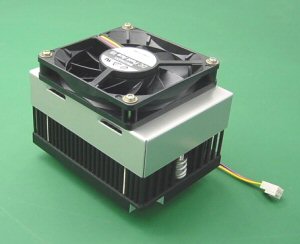

PAL8150M82----- 80x15mm 20 CFM Fan Thermal Resistance (Rsa) <FAN : Expulsion> 0.260 deg C/W Testing specification:Dummy Heater Size : 31mm sq / Fan Spec. : In the following table PAL8150M82 Overall Height 71 ( mm ) Weight 668 ( grams ) HEAT SINK Material 6063 Aluminum Finish Black Anodized Embedded Copper 1100 or 1020 Size 79x105x50 height FAN SPEC. Dimension 80mm sq. x 15mm Voltage 12 ( DCV ) Current AMP 0.09 ( A ) Speed 2000 ( RPM ) Max. Air Flow 0.57 20.13 ( m3/min ) ( CFM ) Max. Air Pressure 1.29 .05 ( mmAq ) ( IN Aq ) Noise Level 21 ( db[A] ) Vendor SANYO DENKI CO.,LTD Model Number 109P0812M701 Alpha Fan Model# M82 End of PAL8150M82 Spec.
