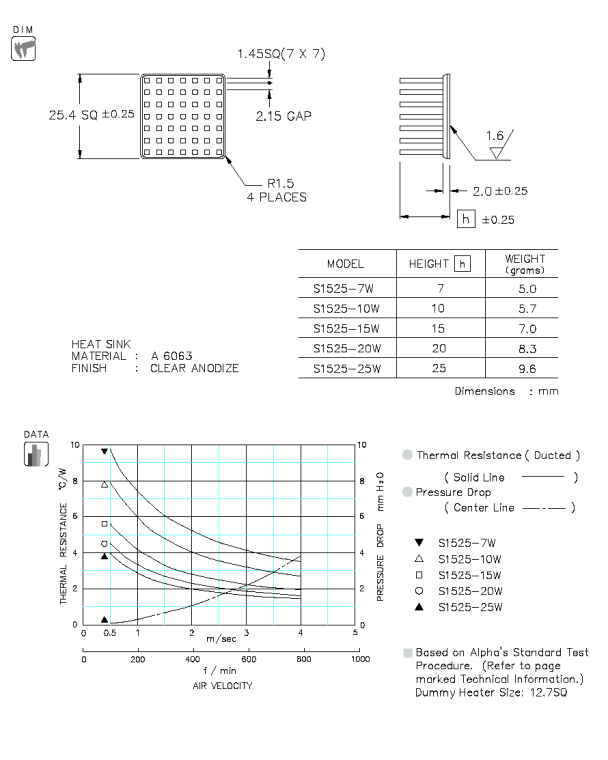

S1525 SPECIFICATION & THERMAL DATA
| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | Option | |||
|---|---|---|---|---|---|---|---|---|---|
| S1525-7W | 7 | 2.0 | 5.0 |
  RoHS  DXF |
STEP | IGES |
Quantity
pcs.
|
Introduce attachment option for the heat sink. |
|
| S1525-10W | 10 | 5.7 | STEP | IGES | |||||
| S1525-15W | 15 | 7.0 | STEP | IGES | |||||
| S1525-20W | 20 | 8.3 | STEP | IGES | |||||
| S1525-25W | 25 | 9.6 | STEP | IGES | |||||
Select Height |
--- | --- |
|||||||
Dimension :mm
