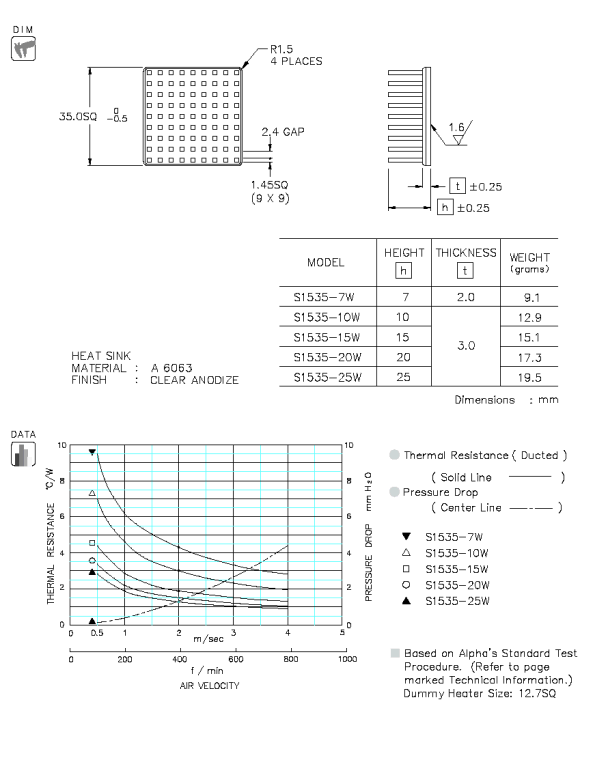

S1535 SPECIFICATION & THERMAL DATA
| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | Option | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| S1535-7W | 7 | 2.0 | 9.1 |
  RoHS  DXF |
STEP | IGES |
|
Introduce attachment option for the heat sink. |
Minimum Order:1 piece Lead-time:2 weeks Specify fin height, base size or holes/tapped holes |
|
| S1535-10W | 10 | 3.0 | 12.9 | STEP | IGES | |||||
| S1535-15W | 15 | 15.1 | STEP | IGES | ||||||
| S1535-20W | 20 | 17.3 | STEP | IGES | ||||||
| S1535-25W | 25 | 19.5 | STEP | IGES | ||||||
Select Height |
--- | --- |
||||||||
Dimension :mm
