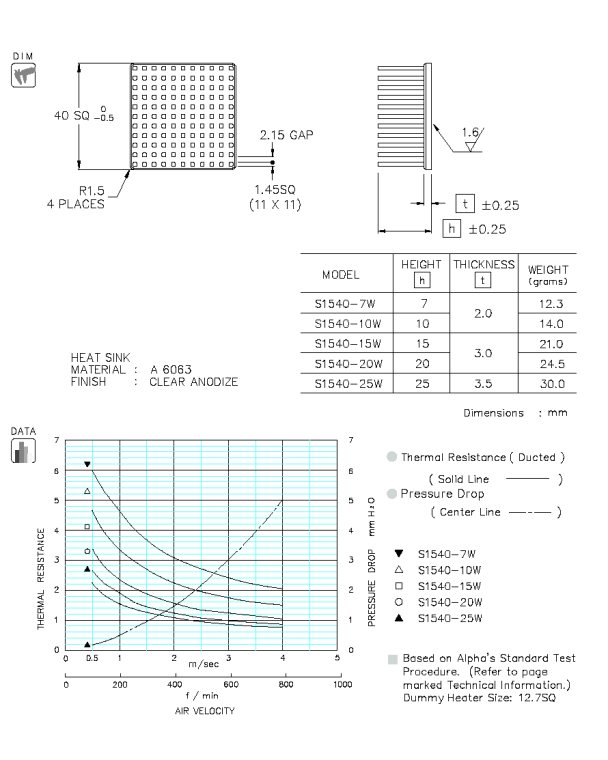

S1540 SPECIFICATION & THERMAL DATA
| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | Option | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| S1540-7W | 7 | 2.0 | 12.3 |
  RoHS  DXF |
STEP | IGES |
Quantity
pcs.
|
Introduce attachment option for the heat sink. |
Minimum Order:1 piece Lead-time:2 weeks Specify fin height, base size or holes/tapped holes |
|
| S1540-10W | 10 | 14.0 | STEP | IGES | ||||||
| S1540-15W | 15 | 3.0 | 21.0 | STEP | IGES | |||||
| S1540-20W | 20 | 24.5 | STEP | IGES | ||||||
| S1540-25W | 25 | 3.5 | 30.0 | STEP | IGES | |||||
Select Height |
--- | --- |
||||||||
Dimension :mm
