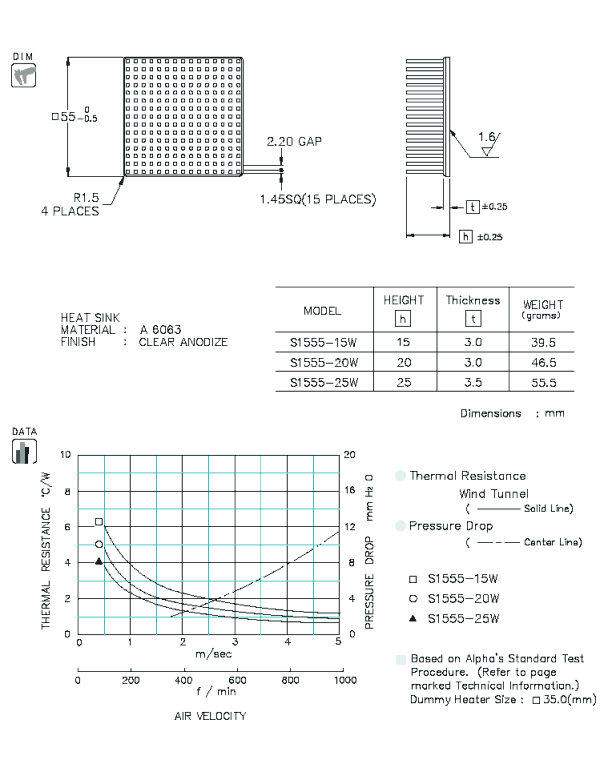

S1555 SPECIFICATION & THERMAL DATA
| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | Option | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| S1555-15W | 15 | 3.0 | 39.5 |
  RoHS  DXF |
STEP | IGES |
Quantity
pcs.
|
Introduce attachment option for the heat sink. |
Minimum Order:1 piece Lead-time:2 weeks Specify fin height, base size or holes/tapped holes |
|
| S1555-20W | 20 | 46.5 | STEP | IGES | ||||||
| S1555-25W | 25 | 3.5 | 55.5 | STEP | IGES | |||||
Select Height |
--- | --- |
||||||||
Dimension :mm
