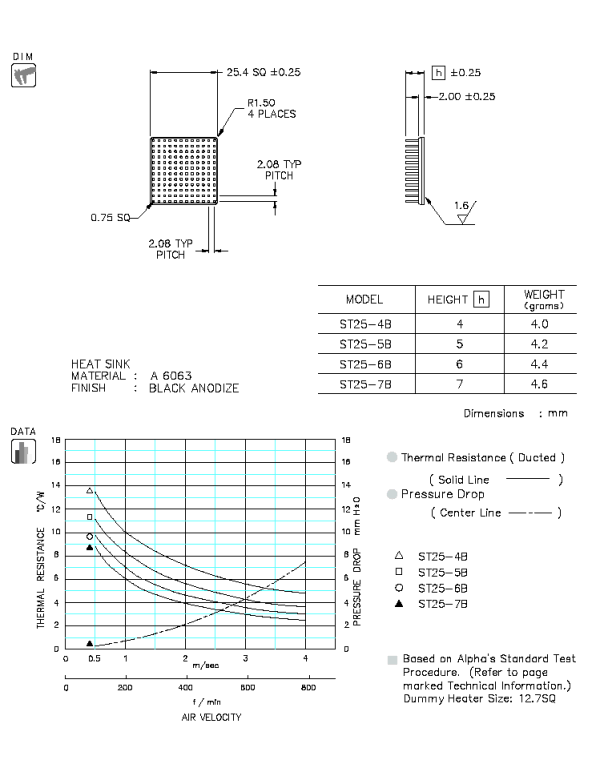

ST25 SPECIFICATION & THERMAL DATA
| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Option | Option | |||
|---|---|---|---|---|---|---|---|---|---|
| ST25-4B | 4 | 2.0 | 4.0 |
  RoHS  DXF |
STEP | IGES |
Quantity
pcs.
|
Introduce attachment option for the heat sink. |
|
| ST25-5B | 5 | 4.2 | STEP | IGES | |||||
| ST25-6B | 6 | 4.4 | STEP | IGES | |||||
| ST25-7B | 7 | 4.6 | STEP | IGES | |||||
Dimension :mm
