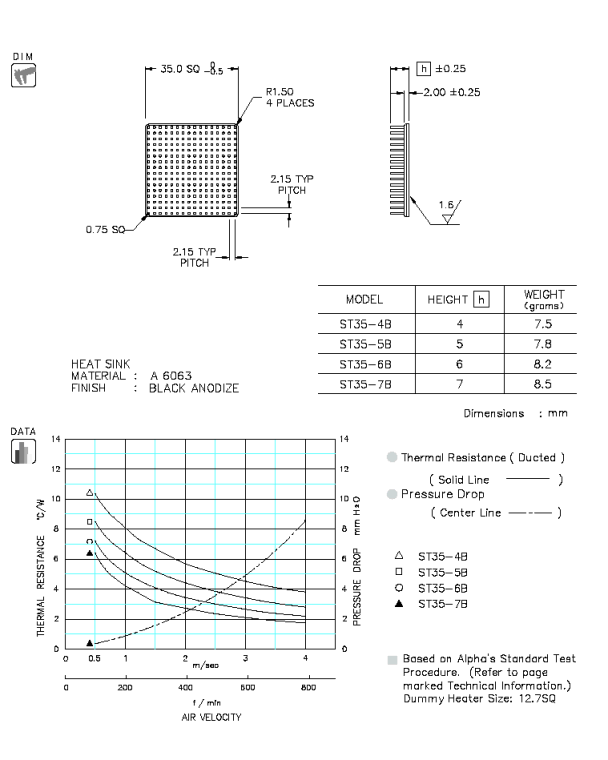

ST35 SPECIFICATION & THERMAL DATA
| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | Option | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| ST35-4B | 4 | 2.0 | 7.5 |
  RoHS  DXF |
STEP | IGES |
Quantity
pcs.
|
Introduce attachment option for the heat sink. |
Minimum Order:1 piece Lead-time:2 weeks Specify fin height, base size or holes/tapped holes |
|
| ST35-5B | 5 | 7.8 | STEP | IGES | ||||||
| ST35-6B | 6 | 8.2 | STEP | IGES | ||||||
| ST35-7B | 7 | 8.5 | STEP | IGES | ||||||
Dimension :mm
