U6489C SPECIFICATION & THERMAL DATA

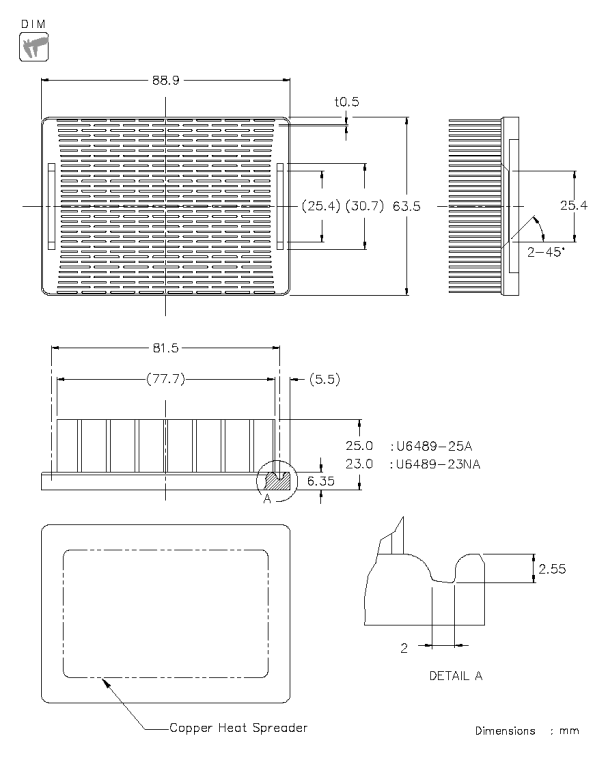

Dimension

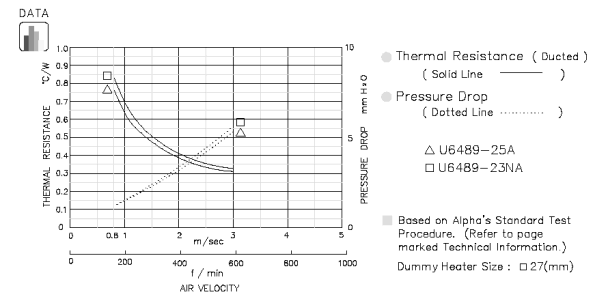

Thermal Test Data
Parts List| Model | Weight(g) | Description | Drawing | |
| Heat Sink | U6489C-25A | 220 | Material: A6063/Copper Embedded Black Anodize Except Base |
PDF Format DXF Format |
| U6489C-23NA | 213 | Material: A6063/Copper Embedded Non Anodized |
||
| Clip | CLP4X |
4 |  | - |
| Thermal Grease | - | 1 tube per 5 heat sink for bulk package. | - |
