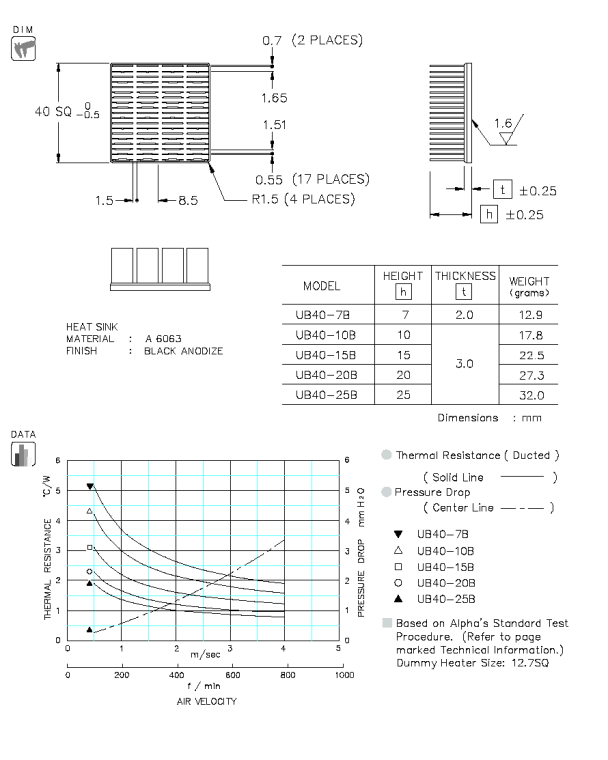

UB40 SPECIFICATION & THERMAL DATA
| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | Option | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| UB40-7B | 7 | 2.0 | 12.9 |
  RoHS  DXF |
STEP | IGES |
|
Introduce attachment option for the heat sink. |
Minimum Order:1 piece Lead-time:2 weeks Specify fin height, base size or holes/tapped holes |
|
| UB40-10B | 10 | 3.0 | 17.8 | STEP | IGES | |||||
| UB40-15B | 15 | 22.5 | STEP | IGES | ||||||
| UB40-20B | 20 | 27.3 | STEP | IGES | ||||||
| UB40-25B | 25 | 32.0 | STEP | IGES | ||||||
Select Height |
--- | --- |
||||||||
Dimension :mm
