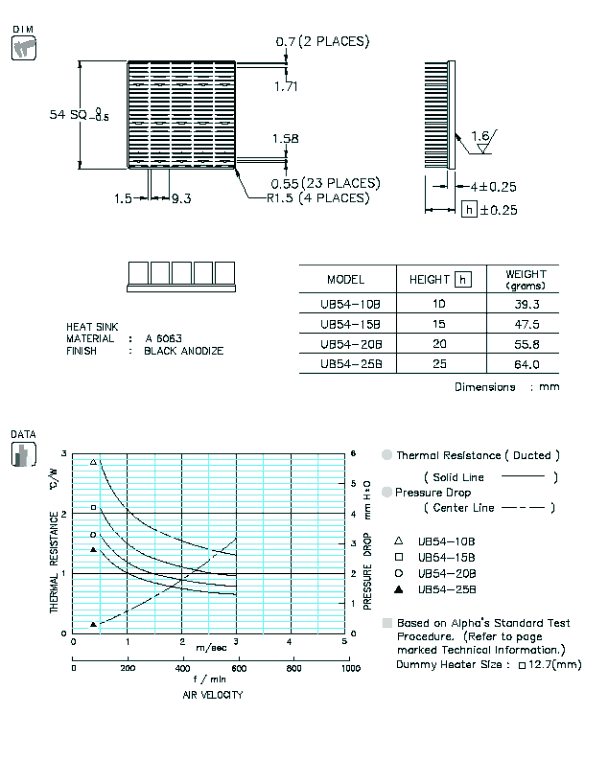

UB54 SPECIFICATION & THERMAL DATA
| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | Option | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| UB54-6B | 6 | 3.0 | 28.1 |
  RoHS  DXF |
STEP | IGES |
Quantity
pcs.
|
Introduce attachment option for the heat sink. |
Minimum Order:1 piece Lead-time:2 weeks Specify fin height, base size or holes/tapped holes |
|
| UB54-7B | 7 | 30.2 | STEP | IGES | ||||||
| UB54-8B | 8 | 30.6 | STEP | IGES | ||||||
| UB54-9B | 9 | 32.4 | STEP | IGES | ||||||
| UB54-10B | 10 | 4.0 | 39.3 | STEP | IGES | |||||
| UB54-15B | 15 | 47.5 | STEP | IGES | ||||||
| UB54-20B | 20 | 55.8 | STEP | IGES | ||||||
| UB54-25B | 25 | 64.0 | STEP | IGES | ||||||
Select Height |
--- | --- |
||||||||
Dimension :mm
