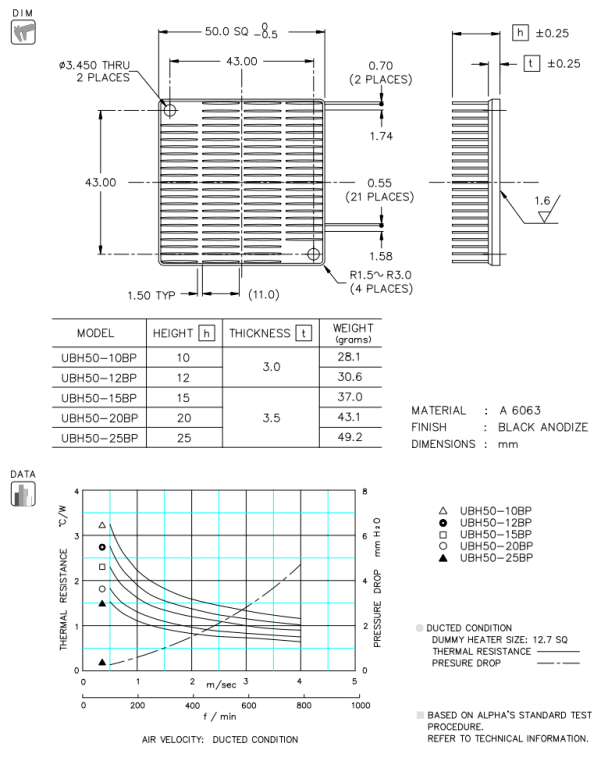

UBH50 SPECIFICATION & THERMAL DATA
Model Name :
UBH50-
BP
-
| Code | Height (h) | Base (t) | |
|---|---|---|---|
| 10 | 10 mm | 3.0 mm | |
| 15 | 15 mm | 3.5 mm | |
| 20 | 20 mm | 3.5 mm | |
| 25 | 25 mm | 3.5 mm |
| Push pin | Spring | Note | ||||
|---|---|---|---|---|---|---|
| Code | Code No | Name | Code | Code No/ Name | ||
| None | -- | -- | None | -- |  | |
| -- | -------- | -------- | -- | -------- | ||
| ||||||
| Code | Code No | Name | |
|---|---|---|---|
| None | -- | -- | |
| -- | -- |
- For ordering of individual components, such as push pins or springs, please visit each link/page.
