UBH70

UBH70 SPECIFICATION & THERMAL DATA

Heat Sink AssemblyBasic Model NumberAssembly (With push pins, springs, thermal interface)
Picture Heat Sink with push pins UBH70-10BP
UBH70-15BP
UBH70-20BP
UBH70-25BP
Heat Sink onlyCode NoModel NameHeight h(mm)Base t(mm)Weight(g)Online Shopping
Picture Heat Sink only S089BX0VUBH70-10BP10375.1 Start Online Shopping
S089BX0WUBH70-15BP15497.2 Start Online Shopping
S089BX0XUBH70-20BP204108.9 Start Online Shopping
S089BX0YUBH70-25BP254120.6 Start Online Shopping

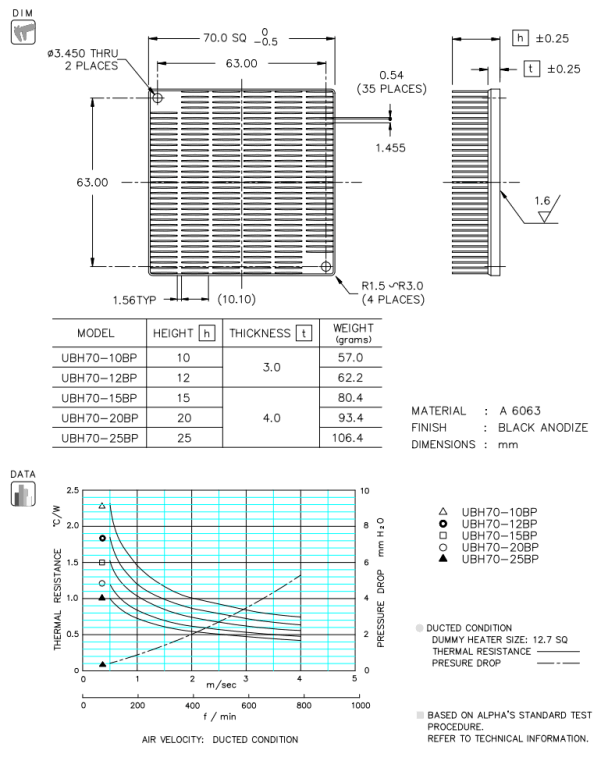

Dimension and Thermal Data Board keepout patterns
