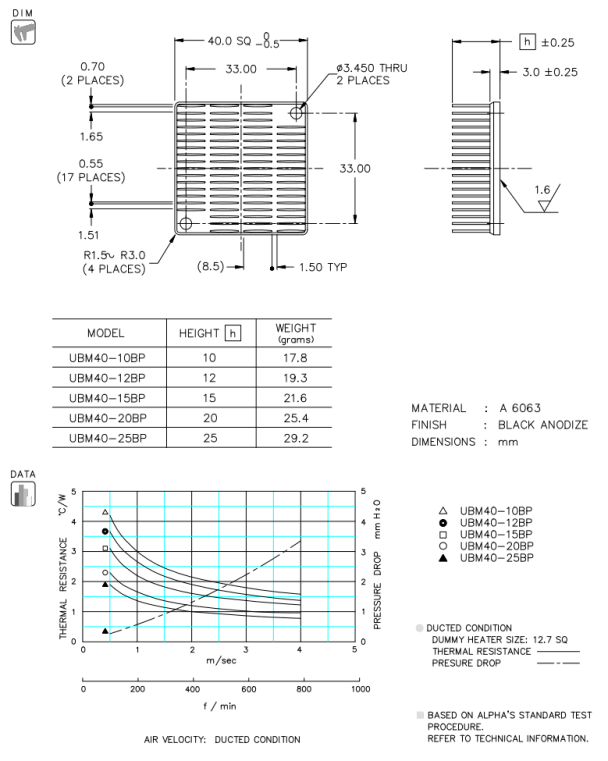

UBM40 SPECIFICATION & THERMAL DATA
| Heat Sink Assembly | Basic Model Number | Assembly (With push pins, springs, thermal interface) | |
|---|---|---|---|
|
UBM40-10BP | ||
| UBM40-15BP | |||
| UBM40-20BP | |||
| UBM40-25BP | |||
| Heat Sink only | Code No | Model Name | Height h(mm) | Weight(g) | Online Shopping |
|---|---|---|---|---|---|
|
S089BY03 | UBM40-10BP | 10 | 17.1 | Start Online Shopping |
| S089BY04 | UBM40-15BP | 15 | 21.5 | Start Online Shopping | |
| S089BY05 | UBM40-20BP | 20 | 26.0 | Start Online Shopping | |
| S089BY06 | UBM40-25BP | 25 | 30.3 | Start Online Shopping |
