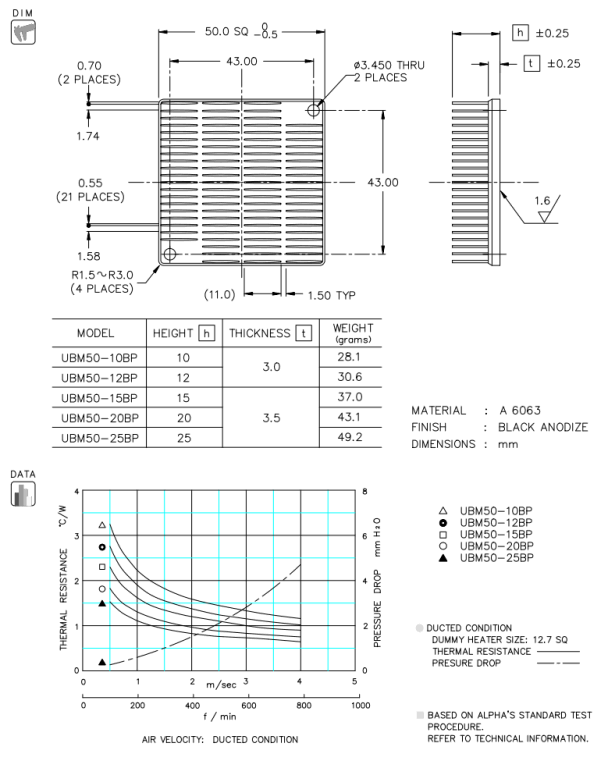

UBM50 SPECIFICATION & THERMAL DATA
| Heat Sink Assembly | Basic Model Number | Assembly (With push pins, springs, thermal interface) | |
|---|---|---|---|
|
UBM50-10BP | ||
| UBM50-15BP | |||
| UBM50-20BP | |||
| UBM50-25BP | |||
| Heat Sink only | Code No | Model Name | Height h(mm) | Base t(mm) | Weight(g) | Online Shopping |
|---|---|---|---|---|---|---|
|
S089BY0D | UBM50-10BP | 10 | 3 | 27.0 | Start Online Shopping |
| S089BY0E | UBM50-15BP | 15 | 3.5 | 36.8 | Start Online Shopping | |
| S089BY0F | UBM50-20BP | 20 | 3.5 | 43.8 | Start Online Shopping | |
| S089BY0G | UBM50-25BP | 25 | 3.5 | 50.9 | Start Online Shopping |
