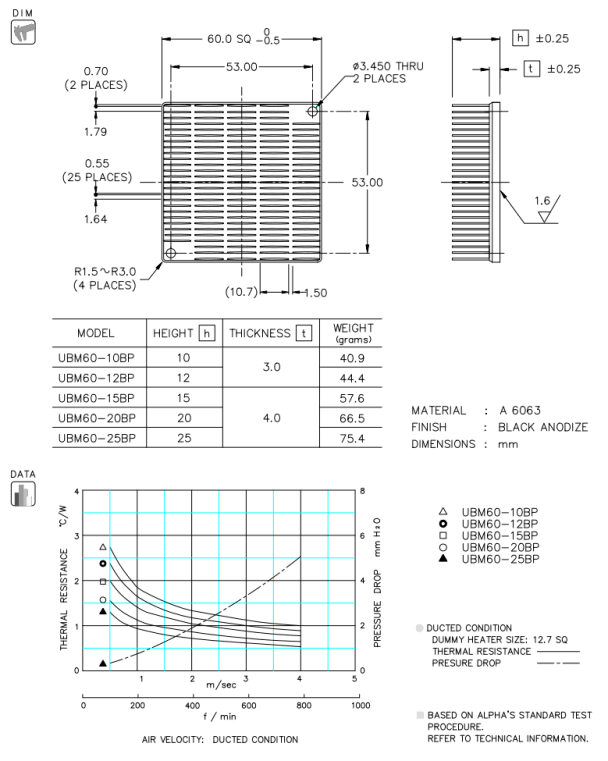

UBM60 SPECIFICATION & THERMAL DATA
| Heat Sink Assembly | Basic Model Number | Assembly (With push pins, springs, thermal interface) | |
|---|---|---|---|
|
UBM60-10BP | ||
| UBM60-15BP | |||
| UBM60-20BP | |||
| UBM60-25BP | |||
| Heat Sink only | Code No | Model Name | Height h(mm) | Base t(mm) | Weight(g) | Online Shopping |
|---|---|---|---|---|---|---|
|
S089BY0P | UBM60-10BP | 10 | 3 | 41.0 | Start Online Shopping |
| S089BY0Q | UBM60-15BP | 15 | 4 | 57.0 | Start Online Shopping | |
| S089BY0R | UBM60-20BP | 20 | 4 | 65.0 | Start Online Shopping | |
| S089BY0S | UBM60-25BP | 25 | 4 | 73.0 | Start Online Shopping |
