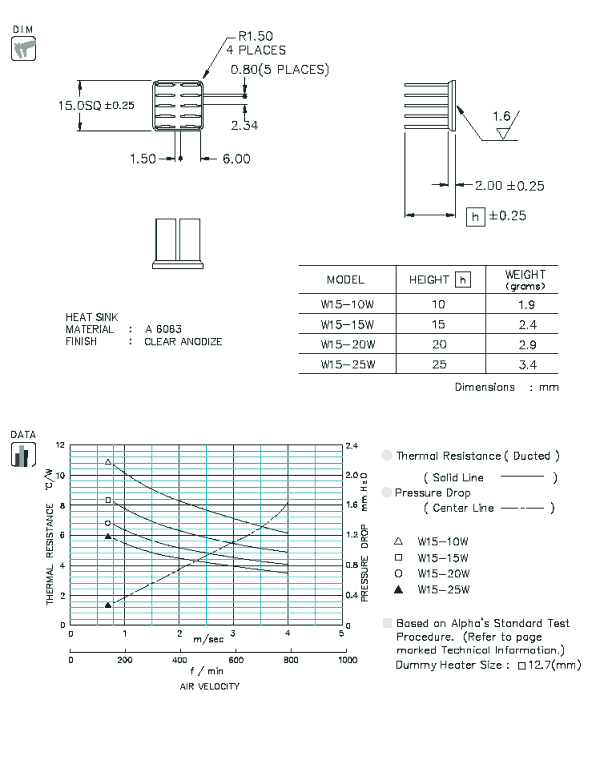

W15 SPECIFICATION & THERMAL DATA
| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | Option | |||
|---|---|---|---|---|---|---|---|---|---|
| W15-10W | 10 | 2.0 | 1.9 |
  RoHS  DXF |
STEP | IGES |
Quantity
pcs.
|
Introduce attachment option for the heat sink. |
|
| W15-15W | 15 | 2.4 | STEP | IGES | |||||
| W15-20W | 20 | 2.9 | STEP | IGES | |||||
| W15-25W | 25 | 3.4 | STEP | IGES | |||||
Select Height |
--- | --- |
|||||||
Dimension :mm
