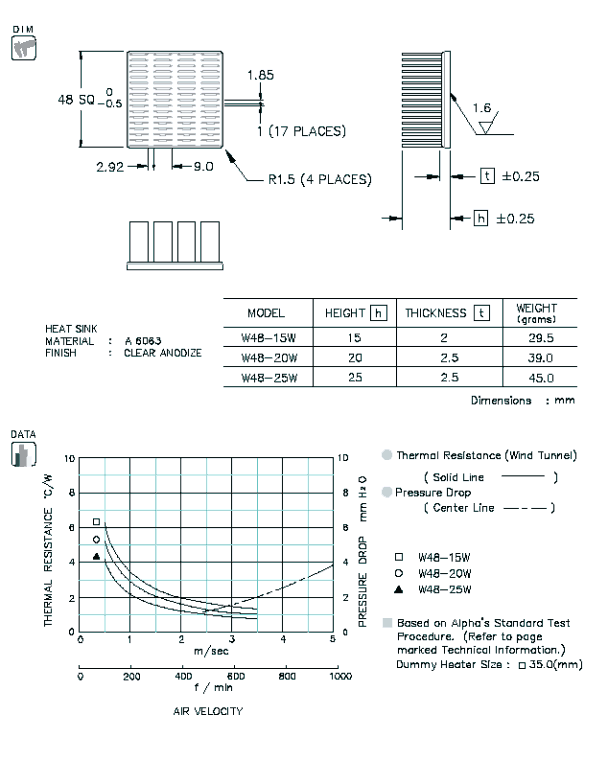

W48 SPECIFICATION & THERMAL DATA
| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | Option | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| W48-15W | 15 | 2.0 | 29.5 |
  RoHS  DXF |
STEP | IGES | Quantity
pcs.
|
Introduce attachment option for the heat sink. |
Minimum Order:1 piece Lead-time:2 weeks Specify fin height, base size or holes/tapped holes |
|
| W48-20W | 20 | 2.5 | 39.0 | STEP | IGES | |||||
| W48-25W | 25 | 45.0 | STEP | IGES | ||||||
Select Height | --- | --- | ||||||||
Dimension :mm
