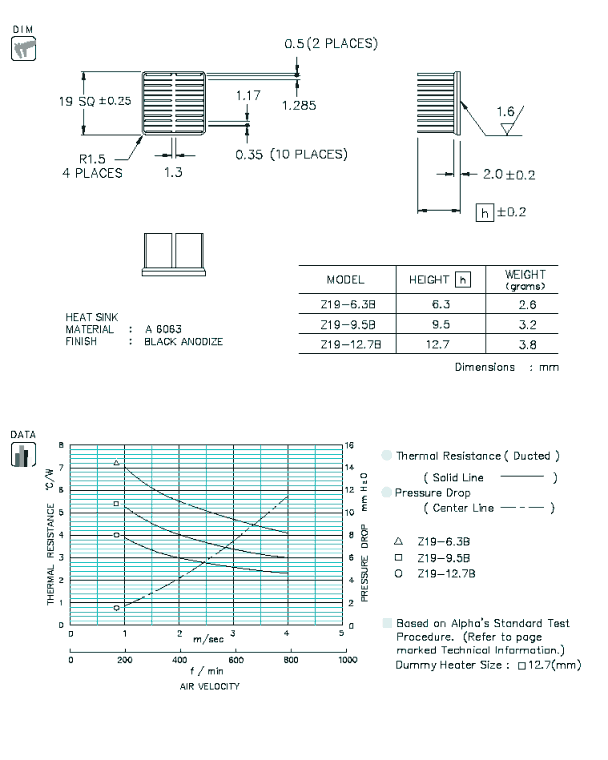

| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Option | Option | |||
|---|---|---|---|---|---|---|---|---|---|
| Z19-6.3B | 6.3 | 2.0 | 2.6 |
![]() ![]() RoHS ![]() DXF |
STEP | IGES |
Quantity
pcs.
|
Introduce attachment option for the heat sink. |
|
| Z19-9.5B | 9.5 | 3.2 | STEP | IGES | |||||
| Z19-12.7B | 12.7 | 3.8 | STEP | IGES | |||||
Select Height |
--- | --- |
|||||||
Dimension :mm
