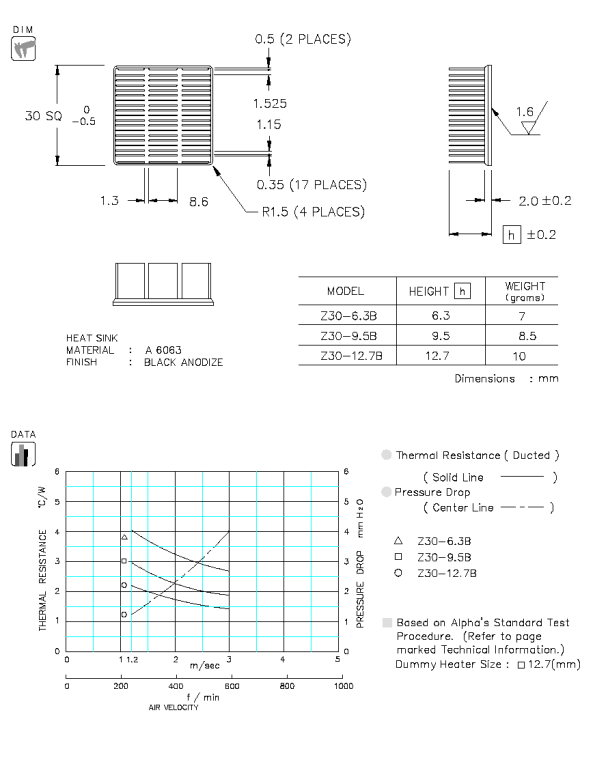

Z30 SPECIFICATION & THERMAL DATA
| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | Option | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Z30-6.3B | 6.3 | 2.0 | 7.0 |
  RoHS  DXF |
STEP | IGES |
Quantity
pcs.
|
Introduce attachment option for the heat sink. |
Minimum Order:1 piece Lead-time:2 weeks Specify fin height, base size or holes/tapped holes |
|
| Z30-9.5B | 9.5 | 8.5 | STEP | IGES | ||||||
| Z30-12.7B | 12.7 | 10.0 | STEP | IGES | ||||||
Select Height |
--- | --- |
||||||||
Dimension :mm
