We usually carry the following fans in stock. Please feel free to contact us.

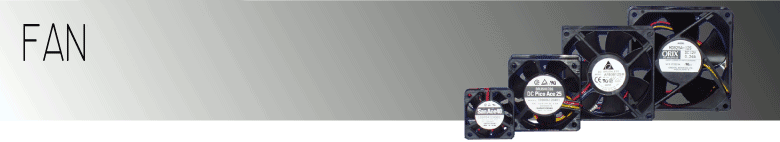

| Fan | |||||
| Model Name | M42 | M60 | M63 | M64 | |
|---|---|---|---|---|---|
| Size (mm) | 40 x 40 x 10 | 60 x 60 x 25 | 60 x 60 x 10 | 60 x 60 x 13 | |
| Vendor | SANYO DENKI | SANYO DENKI | DELTA ELECTRONICS | DELTA ELECTRONICS | |
| Mfg. PN | 109P0412H901 | 109R0612H401 | EFB0612HHA-F00 | AFB0612VHC-F00 | |
| Voltage DC V | 12 | 12 | 12 | 12 | |
| Current AMP | 0.07 | 0.11 | 0.18 | 0.24 | |
| Speed RPM | 6,200 | 3,800 | 4,800 | 5,400 | |
| Maximum Air Flow m3/min | 0.15 | 0.53 | 0.60 | 0.785 | |
| Maximum Air Pressure mmAq | 4.20 | 4.10 | 4.30 | 6.41 | |
| Noise Level dB[A] | 25 | 28 | 36.5 | 38 | |
| Signal Output | Speed Sensor | Speed Sensor | Speed Sensor | Speed Sensor | |
| Wire length (mm) | 320 +/- 20 | 300 +/- 20 | 317 +/- 10 | 102 +/- 10 | |
| Finger Guard | NO | NO | NO | NO | |
| Model Name | M80 | M81 | M82 | M86 |
|---|---|---|---|---|
| Size (mm) | 80 x 80 x 25.4 | 80 x 80 x 25.4 | 80 x 80 x 15 | 80 x 80 x 25 |
| Vendor | Oriental Motor | DELTA ELECTRONICS | SANYO DENKI | SANYO DENKI |
| Mfg. PN | T-MD825B-12-G | AFB0812SH-F00 | 109P0812M701 | 109R0812G401 |
| Voltage DC V | 12 | 12 | 12 | 12 |
| Current AMP | 0.25 | 0.34 | 0.09 | 0.37 |
| Speed RPM | 3,800 | 4,000 | 2,000 | 4,500 |
| Maximum Air Flow m3/min | 1.00 | 1.32 | 0.57 | 1.50 |
| Maximum Air Pressure mmAq | 5.00 | 6.78 | 1.29 | 8.20 |
| Noise Level dB[A] | 35 | 40 | 21 | 40 |
| Signal Output | NO | Speed Sensor | Speed Sensor | Speed Sensor |
| Wire length (mm) | 285 +/- 25 | 330 +/- 10 | 300 +/- 20 | 300 +/- 20 |
| Finger Guard | YES | NO | NO | NO |
| Model Name | M92P | M93 | Air Flow :
1 m³/min = 35.31 CFM |
|
|---|---|---|---|---|
| Size (mm) | 92 x 92 x 25.4 | 92 x 92 x 25.4 | ||
| Vendor | Oriental Motor | SANYO DENKI | ||
| Mfg. PN | MD925A-12S | 109P0912M401 | ||
| Voltage DC V | 12 | 12 | ||
| Current AMP | 0.24 | 0.10 | ||
| Speed RPM | 3,400 | 2,100 | ||
| Maximum Air Flow m3/min | 1.30 | 1.04 | ||
| Maximum Air Pressure mmAq | 5.00 | 2.40 | ||
| Noise Level dB[A] | 36 | 27 | ||
| Signal Output | Speed Sensor | Speed Sensor | ||
| Wire length (mm) | 285 +/- 25 | 300 +/- 20 | ||
| Finger Guard | NO | NO | ||
