Please Note:
We have discontinued the following items.
P6580L / P7580L
We may have some small quantities in stock,
so please contact us if you are interested.

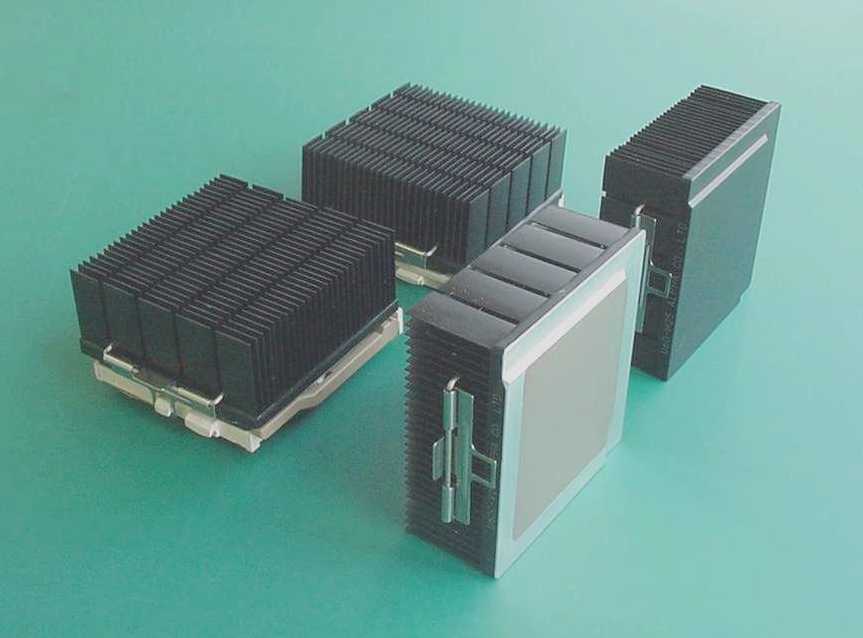

U60C
/ U60
for FC-PGA , PPGA ,
Athlon , Duron
|
- 0.55mm Elliptical Fins
- Low Pressure Drop and Low Thermal Resistance Heat Sink
- Suitable for Low Profile Passive Cooling
- CPU heat sinks for socket 370, 462 , 1U RACK with high-performance
fins based on the UBC and UB series.
|
Please click model number for detail information such as specification, performance data. |
|
| MODEL
|
DRAWING
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Common specification
|
BASE SIZE 60 x 60 , HEIGHT 25
THERMAL GREASE : YG6260-5
Clip : CL57L1 |
|
|
|
back to top
P5060L / P5060W
P6580L / P7580L
for PPGA
|
- CPU heat sinks
for socket 5, 7, 370 and 8 with high-performance fins based
on the LS and W series.
|
|
Please click model number for detail information such as specification, performance data. |
|
|
MODEL
|
BASE SIZE
|
HEIGHT
|
DRAWING
|
|
P5060L |
50 x 60 |
25, 30, 35 |
|
|
P5060W |
51.2 x 60 |
20, 25, 30 |
|
P6580L
Socket 8 |
65 x 80 |
30, 35, 40, 45 |
DXF file (P6580L.zip 28KB) |
P7580L
Socket 8 |
75 x 80 |
30, 35, 40, 45 |
DXF file (P7580L.zip 26KB) |
