* CPU heat sinks and fan heat sink units for socket 5, 7, 370, 462 with hexagonal pin fins and Wing fins.

PAL	PEP

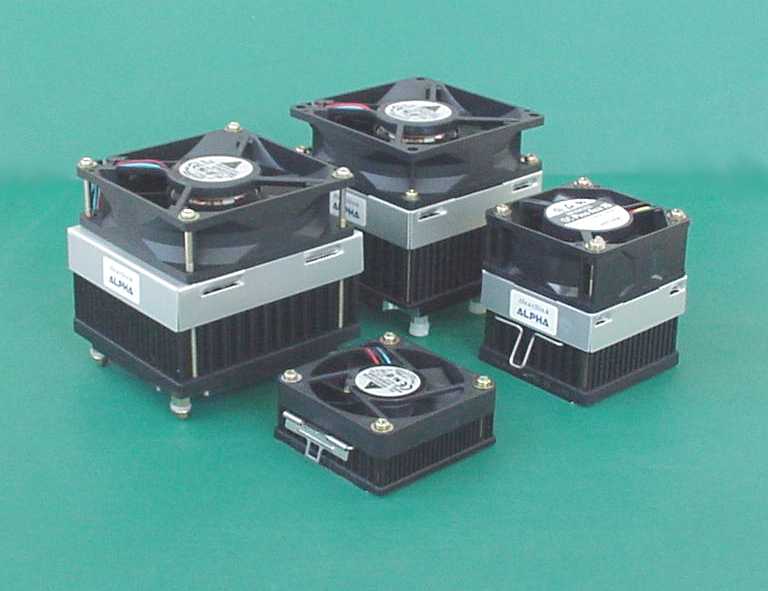

Copper heat spreader TYPE for Athlon, Duron S-PAL8045/8055 for FC-PGA, PPGA, Athlon, Duron FRONT RIGHT : PAL6035MUC FRONT LEFT : PAL153U All aluminum TYPE for FC-PGA2 PAL14	Copper heat spreader TYPE for FC-PGA, PPGA, Athlon, Duron LEFT : PEP66C RIGHT : PEP66U
These product are not assembled when we ship. ( Finger guards are not included )
Thermal Resistance S-PAL8055M81 ---- 80x25mm 47CFM Fan 0.27 deg C/W S-PAL8045M81 ---- 80x25mm 47CFM Fan 0.28 deg C/W PEP66U 0.35 deg C/W PAL6035MUC 0.37 deg C/W PAL6030MUC 0.39 deg C/W PAL153U 0.72 deg C/W PAL15U 0.80 deg C/W

back to top

S-PAL8045 S-PAL8055 for Athlon , Duron Copper heat spreader TYPE Please click model number for detail information such as specification, performance data.
MODEL	PARTS
	Thermal grease YG6260-5	INTAKE COVER	FAN-M81 ( 80sq FAN )	SCREW M3 x 80 Length M3 x 70 Length M3 x 30 Length ( to attach FAN )	PARTS-SET FLG462
S-PAL8045F	NO	YES CT80S	NO	YES	YES
S-PAL8045FU	YES	YES CT80S	YES ( t25 FAN)	YES	YES
S-PAL8055F	NO	YES CT80L	NO	YES	YES
S-PAL8055FU	YES	YES CT80L	YES ( t25 FAN)	YES	YES
The S-PAL8045/55 no longer requires the 4 holes surrounding the socket for mounting. The heat sink mounts to a custom bracket attaches directly to the socket.Also, the base shape has been modified to accomodate the entire AMD keepout area. With these two changes, the S-PAL8045/55 should be compatible with almost every socket A board available. Depending on the height of components surrounding the socket, the bracket and heat sink may not be compatible. Please review this drawing (X001ZF23.pdf) to ensure your board is compatible.
The FLG462 mounting bracket is not compatible with the base of the PAL8045 due to differences in the machining. (Remarks.)
S-PAL8045, 8055: Installation Guide (X001ZF1Y-A.pdf 784KB)
To install the S-PAL8045/55 directly to the MB via standoffs as an optional method, need to use MTGH-SPL80S mounting hardware kits. This MTGH-SPL80S is an option accessary. This kit contains all of the hardware required to attach the heat sink directly to the MB if the 4 holes surrounding the socket are present. S-PAL8045, 8055 with MTGH-SPL80S: Installation Guide (X001ZF21.pdf 707KB)

back to top

PAL for FC-PGA , PPGA , Athlon , Duron Copper heat spreader TYPE Please click model number for detail information such as specification, performance data.
MODEL	PARTS
	Thermal grease YG6260-5	INTAKE COVER	FAN	SCREW ( to attach FAN )	CLIP
PAL6030AC	NO	NO	NO	NO	CL57G
PAL6030MFC	NO	CT 6011	NO	YES	CL57G
PAL6030MUC	YES	CT 6011	M60(60sq FAN)	YES	CL57G
PAL6035AC	NO	NO	NO	NO	CL57G
PAL6035MFC	NO	CT 6016	NO	YES	CL57G
PAL6035MUC	YES	CT 6016	M60 (60sq FAN)	YES	CL57G
PAL15T	NO	(NOT NEED)	NO	YES	CL57L
PAL15U	YES	(NOT NEED)	M61(60sq t10 FAN)	YES	CL57L
We have discontinued the PAL15 series.
PAL153T	NO	(NOT NEED)	NO	YES	CL57L1
PAL153U	YES	(NOT NEED)	M61(60sq t10 FAN)	YES	CL57L1
PAL6030/PAL6035 : Installation Guide (X001ZF0J-02.pdf 237KB) PAL153 : Installation Guide (X001ZF0Q-01.pdf 283KB)

back to top

PAL14 for FC-PGA2 All aluminum TYPE Please click model number for detail information such as specification, performance data.
MODEL	PARTS
	Thermal grease YG6260-5	INTAKE COVER	FAN	SCREW ( to attach FAN )	CLIP
PAL14T	NO	(NOT NEED)	NO	YES	CL57L1
PAL14U	YES	(NOT NEED)	M61(60sq t10 FAN)	YES	CL57L1
PAL14 : Installation Guide (X001ZF0Y-01.pdf 238KB)

back to top

PEP66 for FC-PGA , PPGA , Athlon , Duron Copper heat spreader TYPE Please click model number for detail information such as specification, performance data.
MODEL	PARTS
	Thermal grease YG6260-5	INTAKE COVER	FAN	SCREW ( to attach FAN )	CLIP
PEP66C	NO	NO	NO	NO	CL57H2
PEP66T	NO	CS 61	NO	YES	CL57H2
PEP66U	YES	CS 61	M60(60sq FAN)	YES	CL57H2
PEP66 : Installation Guide (X001ZF0E-D.pdf 226KB)
