Heat Sink for Xeon CPU. Low Profile Passive Heat Sink and Active Fan Heat Sinks.
U6489C for Xeon |
| Model Name | Perts List |
| Heat Sink | Attachment Clip | Thermal Grease |
|---|
| U6489C-25C | U6489C-25A
(BLACK ANODIZED) | CLP4X *(see note below) | YG6260-5**(see note below) |
| U6489C-23NC | U6489C-23NA
(NON-ANODIZED) | CLP4X *(see note below) | YG6260-5**(see note below) |
Note: * Plastic retention module XEON RTN is optional. Please refer to Accessory details.
** 1 tube per 5 heat sink for bulk package.
The U6489C is a passive heatsink. Ducted airflow is required to provide adequate cooling for the Xeon processor.
|
|

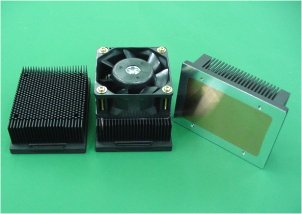

PAL6489 for Xeon |
 |
Fan Heat Sink. Copper Embedded Heat Sink with dual ball bearing fan.
For product details, please click the model name.
|
| Model Name |
Thermal Resistance (degC/W) |
|---|
| PAL6489-25M60 |
0.395 |
 |
| PAL6489-25M63 |
0.350 |
|
| PAL6489-25M64 |
0.320 |
|
|
| PAL6489-35M60 |
0.345 |
|
| PAL6489-35M63 |
0.315 |
|
| PAL6489-35M64 |
0.295 |
|
|
Test Conditions ; Dummy Heater Size: 27mm sq. / 60W ; FAN : Push
|
Please click model number for specifications and performance data.
| Model Name |
Perts List |
|---|
| Heat Sink |
Attachment Clip
CLP4X |
Fan |
Others
(Screw, Washer, Spacer) |
Thermal Grease
YG6260-5 |
|---|
| PAL6489-25C |
PAL6489-25A | Included* | NOT INCLUDED | Included |
NOT INCLUDED |
| PAL6489-25M60 |
PAL6489-25A | Included* | M60 (60 x 25) |
Included | Included **
(see note below) |
| PAL6489-25M63 |
PAL6489-25A | Included* | M63 (60 x 10) |
Included | Included **
(see note below) |
| PAL6489-25M64 |
PAL6489-25A | Included* | M64 (60 x 13) |
Included | Included **
(see note below) |
|
| PAL6489-35C |
PAL6489-35A | Included* | NOT INCLUDED | Included |
NOT INCLUDED |
| PAL6489-35M60 |
PAL6489-35A | Included* | M60 (60 x 25) |
Included | Included **
(see note below) |
| PAL6489-35M63 |
PAL6489-35A | Included* | M63 (60 x 10) |
Included | Included **
(see note below) |
| PAL6489-35M64 |
PAL6489-35A | Included* | M64 (60 x 13) |
Included | Included **
(see note below) |
|
Drawing
(Heat Sink Only) |
PDF Format (S001Z502-B.pdf 64KB) /
DXF Format (S001Z502-B.zip 64KB) |
Note: * Plastic retention module XEON RTN is optional. Please refer to Accessory details.
** 1 tube per 5 heat sink for bulk package. |
PAL6489-25C / PAL6489-35C These are active heatsinks and require the use of a fan.
|
Specification
