FHC100

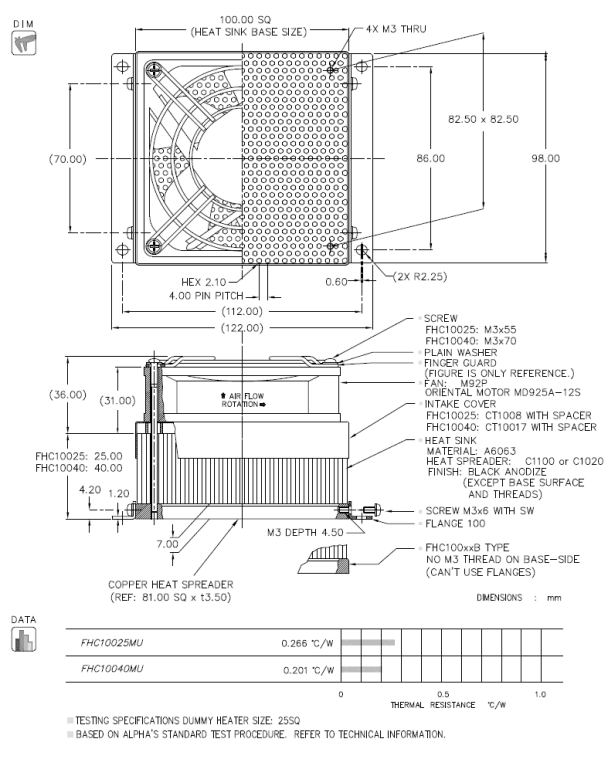

FHC100 SPECIFICATION & THERMAL DATA

Model Name :
FHC100
line
Heat Sink
 CodeHeight
2525 mm
4040 mm
Option
 CodeHeat Sink [Note]Intake CoverFlangeScrewFanWeight(g)
BNo threaded side holes
NO--NONO--
A Threaded side holes
NONONONO--
MF CT100--FLANGE100M3x--NO--
MU CT100--FLANGE100M3x--M92P--
These products are packaged in bulk (not assembled).


No threaded side holes

Threaded side holes
If the use of the standard mounting flange is not required, please select "No threaded side holes". If the standard mounting flange will be required, please select "Threaded side holes".

catalog 3D CAD RoHS REACH
FHC100 Data
  • TESTING SPECIFICATIONS DUMMY HEATER SIZE: 25 SQ
  • BASED ON ALPHA'S STANDARD TEST PROCEDURE. REFER TO TECHNICAL INFORMATION.
