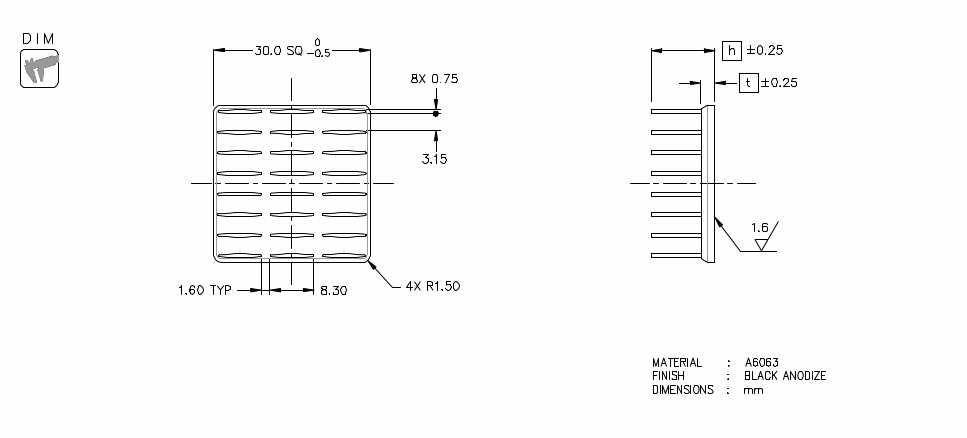

Model | Height h (mm) |
Base t (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
---|---|---|---|---|---|---|---|---|
3 | 2.0 | 5.1 | STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
||
4 | 5.5 | STEP | IGES | |||||
5 | 5.8 | STEP | IGES | |||||
6 | 6.2 | STEP | IGES | |||||
7 | 6.5 | STEP | IGES | |||||
10 | 2.5 | 8.3 | STEP | IGES | ||||
12 | 8.9 | STEP | IGES | |||||
15 | 9.8 | STEP | IGES | |||||
20 | 11.3 | STEP | IGES | |||||
25 | 12.8 | STEP | IGES | |||||
30 | 14.4 | STEP | IGES | |||||
35 | 15.9 | STEP | IGES | |||||
