LPD4030

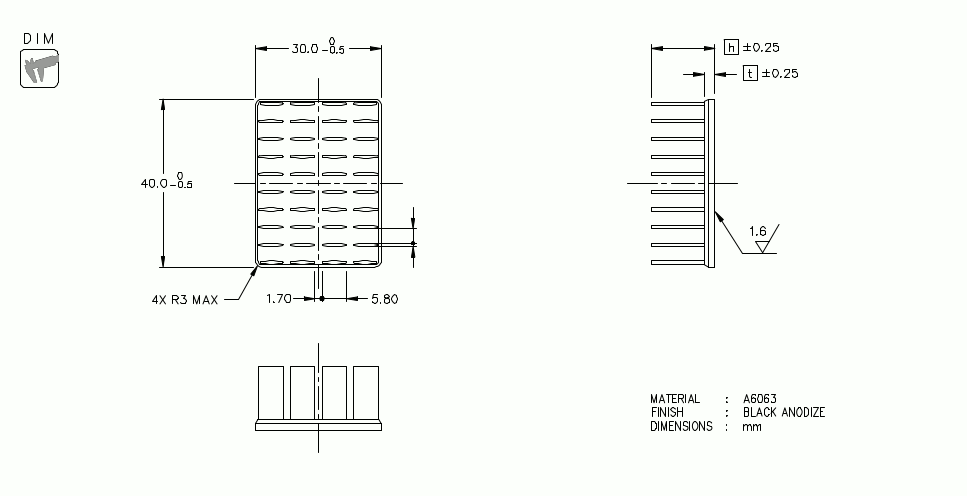

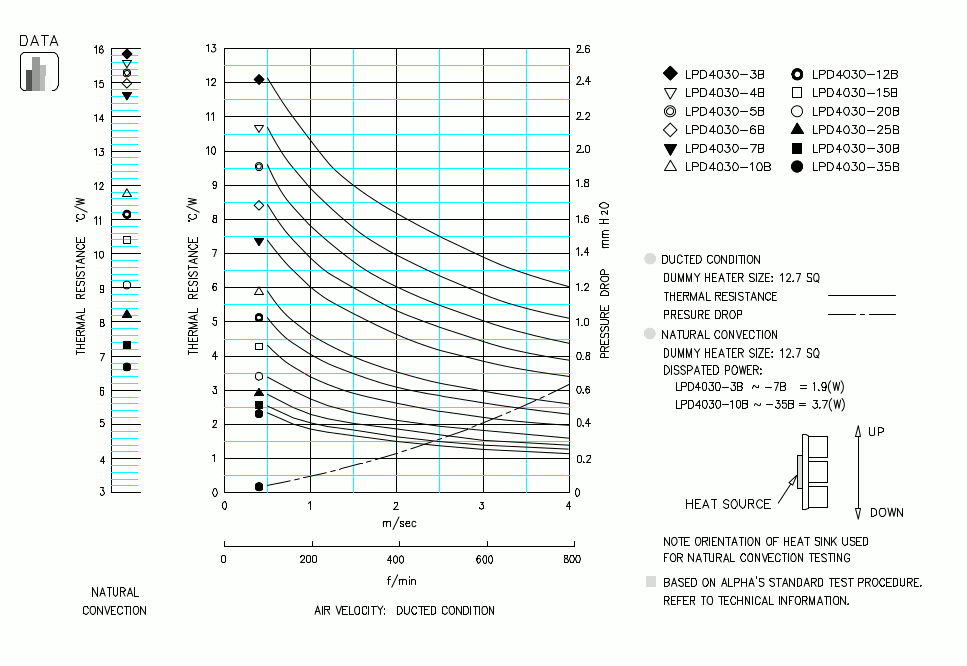

LPD4030 SPECIFICATION & THERMAL DATA
| Model | Height h (mm) |
Base t (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|---|
| 3 | 2.0 | 6.6 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
|
| 4 | 7.0 | STEP | IGES | |||||
| 5 | 7.7 | STEP | IGES | |||||
| 6 | 7.9 | STEP | IGES | |||||
| 7 | 8.1 | STEP | IGES | |||||
| 10 | 2.5 | 10.6 | STEP | IGES | ||||
| 12 | 11.4 | STEP | IGES | |||||
| 15 | 12.5 | STEP | IGES | |||||
| 20 | 14.4 | STEP | IGES | |||||
| 25 | 16.2 | STEP | IGES | |||||
| 30 | 18.1 | STEP | IGES | |||||
| 35 | 20.0 | STEP | IGES | |||||
|
