LPD7050

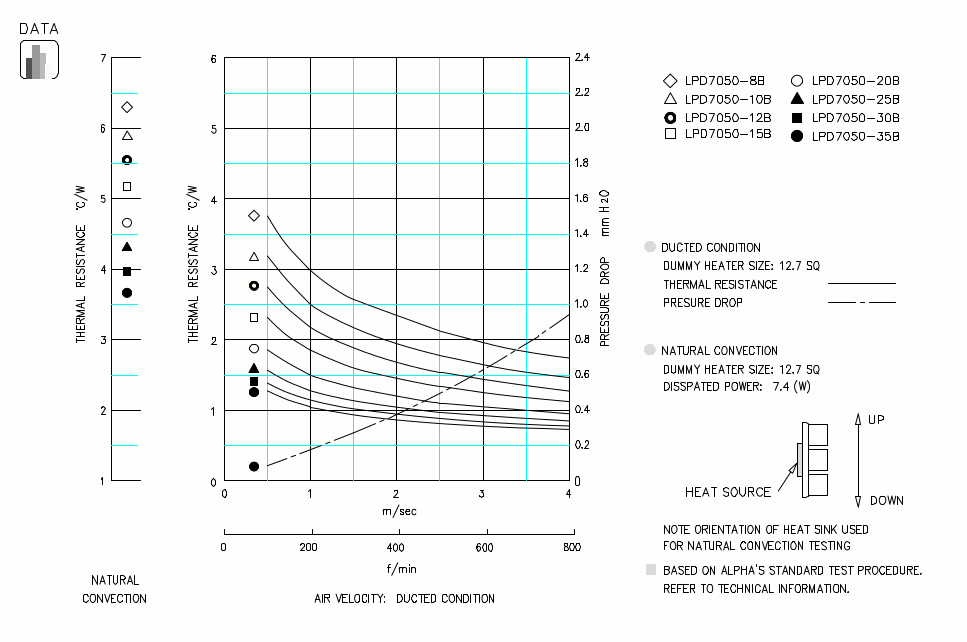

LPD7050 SPECIFICATION & THERMAL DATA

Specification
  MODEL HEIGHT
(h)
WEIGHT
(grams)
Download Price / Online Shopping Option
LPD7050-8B 8 35.0 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
Minimum Order:1 piece
Lead-time:2 weeks
Specify fin height, base size or holes/tapped holes
LPD7050-10B 10 37.7 STEP IGES
LPD7050-12B 1240.5STEP IGES
LPD7050-15B 15 44.6 STEP IGES
LPD7050-20B 20 51.5 STEP IGES
LPD7050-25B 25 58.4 STEP IGES
LPD7050-30B 30 65.3 STEP IGES
LPD7050-35B 35 72.2 STEP IGES
Select Height

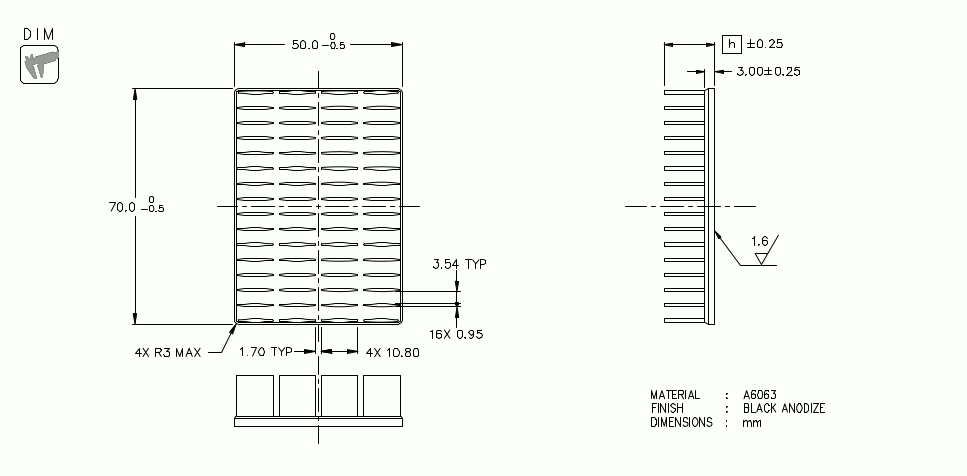

Dimension :mm

Specification
