LPDM70S

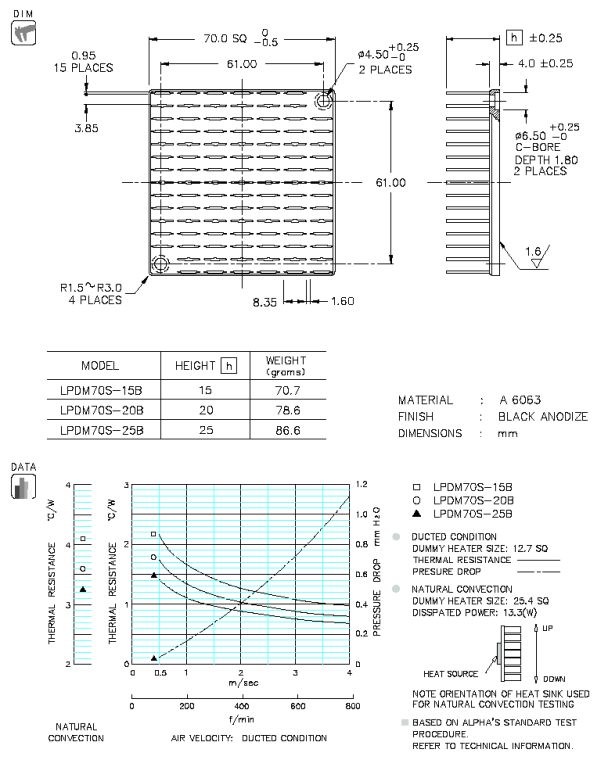

LPDM70S SPECIFICATION & THERMAL DATA

Model Name :
LPDM70S-
{{boxModelName.HSHEIGHT}}
B
-
{{boxModelName.SS}}
{{boxModelName.SPR}}
{{boxModelName.TIM}}
catalog 3D CAD RoHS REACH
Step 1: Select Heat Sink Height
Step 2: Select shoulder screw and spring
Step 3: Select TIM
Heat Sink Height (h)
  Shoulder Screws Springs
{{INP.SSNAME}} {{INP.SPRNO}}
Thermal Interface

Note

The thermal interface materials listed here are phase change materials (PCMs).

These PCMs are naturally tacky and will be pre-applied to the heat sink. However, PCMs may peel-off from the heat sink base when removing the release liner prior to heat sink installation. Since PCMs rely on their natural tackiness instead of an adhesive, this can happen.

In light of this, we recommend that our customers apply additional pressure to the PCMs prior to removing the protective liner to allow the PCMs to wet out on the heat sink surface (refer to instruction item #4 below).

Storage and Handling Instruction

  • To order individual components, such as shoulder screws or springs, please visit each link/page.
  • If heatsink customization (size, hole layout, etc...) is required, we recommend using the online customization tool.
    MOQ is 1 piece, typical lead time is 1-2weeks.
Shoulder screw and spring selected condition(Units: mm)
Chip Height
Chip Contact Area
x
Package Size
x
PCB Thickness
Attachment Method
Distance
PCB Hole Diameter
Height Limit
Allowable Load (N)(kgf)(lbf)
Min
Max
Working Load (N)(kgf)(lbf)
Pressure (N/mm2)(kgf/cm2)(psi)
Thread Protrusion(T.P.)
Dimension and thermal data Board keep out pattern

USE HEX NUTS M3x0.5

Click to enlarge

Click to enlarge

Click to enlarge

SHOULDER-SCREW/RETAINING RING E-2.5
