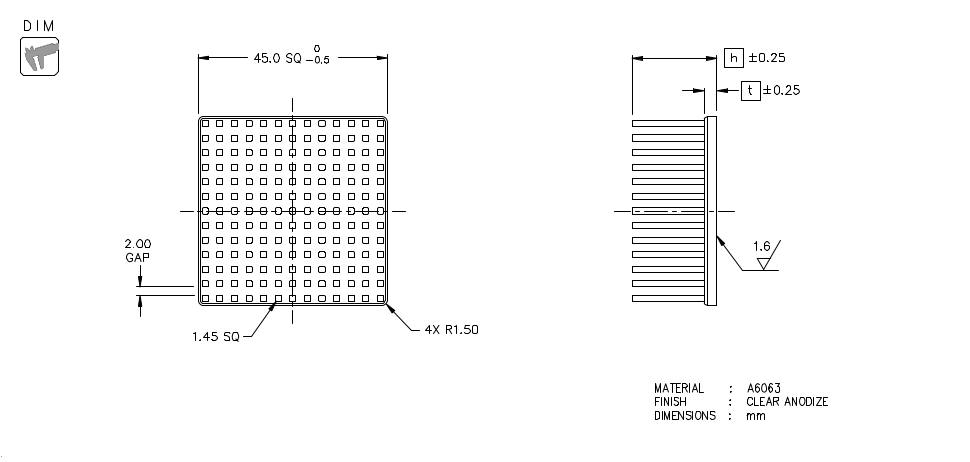

Model | Height h (mm) |
Base t (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
---|---|---|---|---|---|---|---|---|
7 | 2.5 | 17.6 | STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
||
10 | 20.4 | STEP | IGES | |||||
12 | 3.0 | 24.5 | STEP | IGES | ||||
15 | 27.6 | STEP | IGES | |||||
20 | 32.3 | STEP | IGES | |||||
25 | 3.5 | 39.3 | STEP | IGES | ||||
30 | 43.7 | STEP | IGES | |||||
35 | 48.4 | STEP | IGES | |||||
Select Height
