Online Catalog

T35

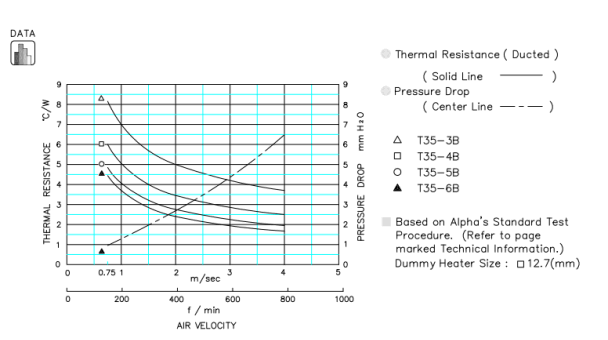

T35 SPECIFICATION & THERMAL DATA

Specification
  MODEL HEIGHT
(h)
BASE
(t)
WEIGHT
(grams)
Download Price / Online Shopping Option
T35-3B 3 2.0 6.85 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
T35-4B47.4STEPIGES
T35-5B57.95STEPIGES
T35-6B68.5STEPIGES

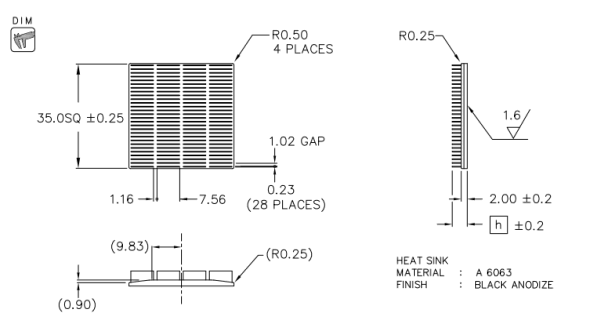

Dimension :mm

Specification
