T40

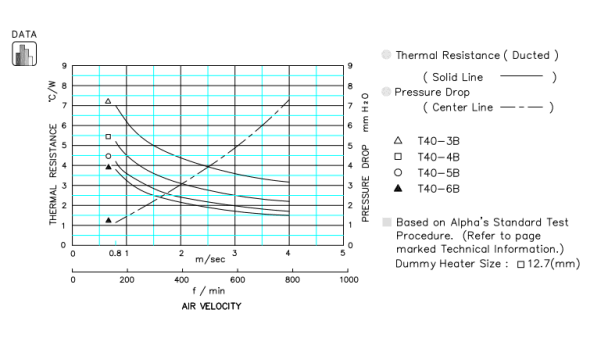

T40 SPECIFICATION & THERMAL DATA

Specification
  MODEL HEIGHT
(h)
BASE
(t)
WEIGHT
(grams)
Download Price / Online Shopping Option
T40-3B 3 2.0 7.2 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
T40-4B48.6STEPIGES
T40-5B510.0STEPIGES
T40-6B611.4STEPIGES

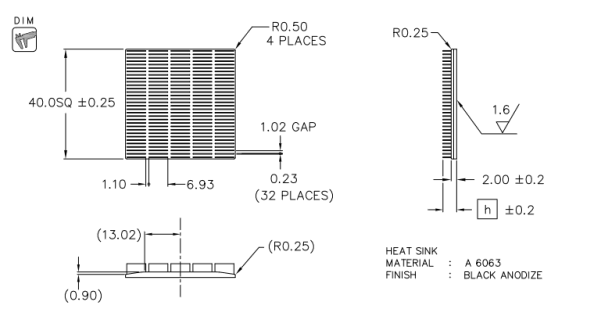

Dimension :mm

Specification
