UB7050

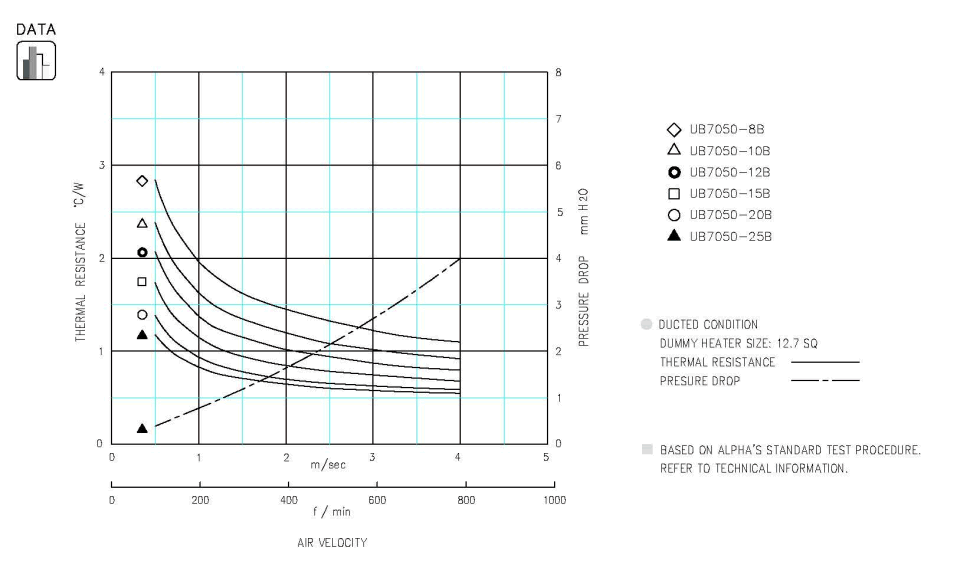

UB7050 SPECIFICATION & THERMAL DATA

Specification
  MODEL HEIGHT
(h)
WEIGHT
(grams)
Download Price / Online Shopping Option
UB7050-8B 8 38.2 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
Minimum Order:1 piece
Lead-time:2 weeks
Specify fin height, base size or holes/tapped holes
UB7050-10B 10 42.3 STEP IGES
UB7050-12B 1246.3STEP IGES
UB7050-15B 15 52.4 STEP IGES
UB7050-20B 20 62.6 STEP IGES
UB7050-25B 25 72.7 STEP IGES
Select Height

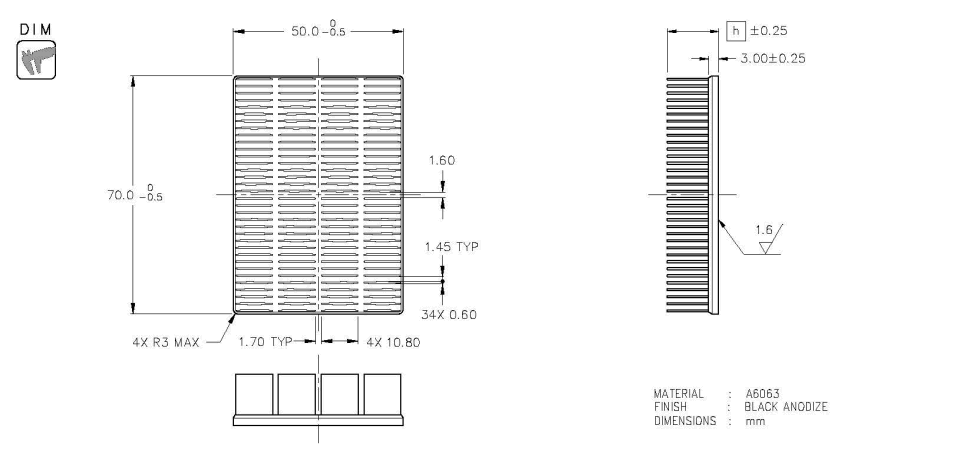

Dimension :mm

Specification
