UBC60

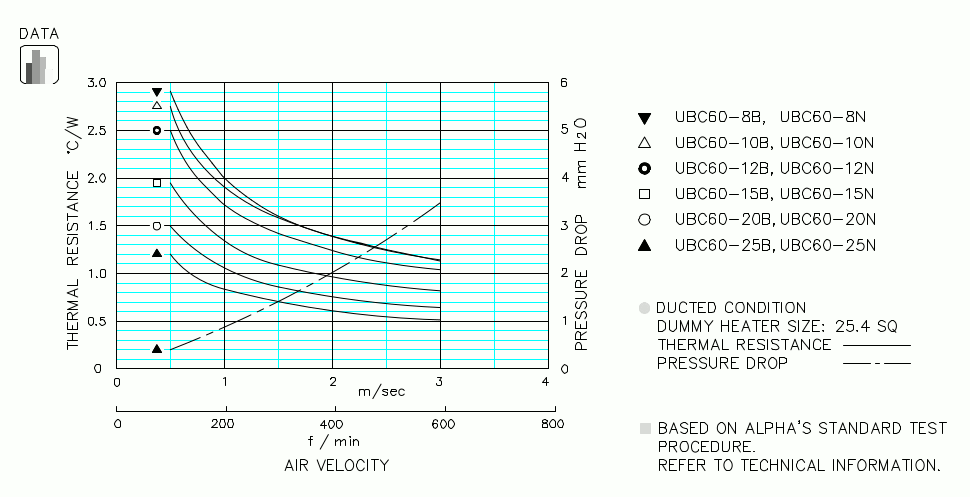

UBC60 SPECIFICATION & THERMAL DATA

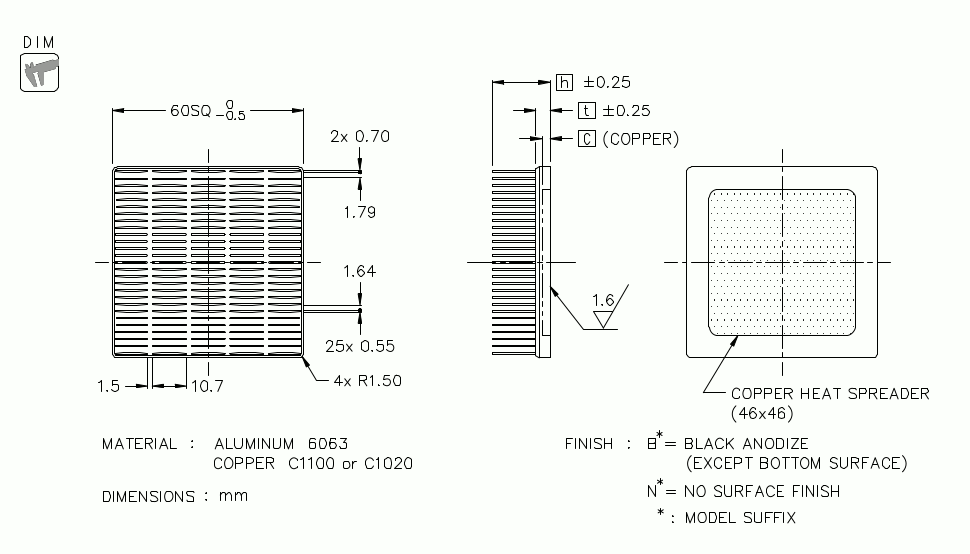

Specification
Model

Height

h (mm)

Base

(mm)

FINISH
B or N

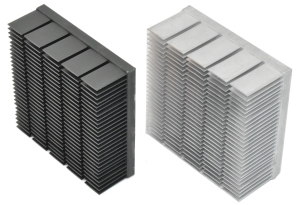

UBC heatsink picture

Alpha’s standard surface finish is anodize, either clear or black.

The anodized finish is not electrically conductive, and provides excellent corrosion and abrasion resistance. However, inside of an electronics chassis, corrosion may not be a significant issue. A6063 aluminum already offers excellent corrosion resistance.

We can offer a significant cost reduction If a bare aluminum finish is acceptable. This cost reduction would be even greater for copper embedded heat sinks, as they require a complex masking process.

A bare aluminum finish can also be used in applications where the heat sink needs to be grounded for EMI reasons.

Close

Weight

(g)

Download Availability / Price / Order Option
10 4.5 B* 85 catalog DXF RoHS REACH STEP IGES
N*
12 B* 88.4 STEP IGES
N*
15 B* 93.5 STEP IGES
N*
20 B* 102 STEP IGES
N*
25 B* 111 STEP IGES
N*
Specification
