UB Series

UB Series

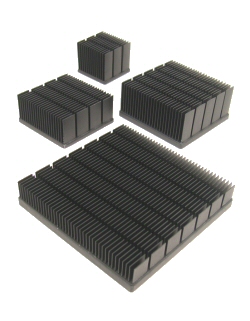

  • 0.55mm Elliptical Fins.
  • Low Pressure Drop and Low Thermal Resistance Heat Sink.
  • Suitable for Low Profile Passive Cooling.
Click on model number for detailed information including specifications and performance data. catalog RoHS REACH 3D CAD
UB series Heat Sink Model Base Size (mm) Height (mm) Drawing
UB10 10 x 10 5, 7, 10, 12, 15, 20 DXF file(14 KB)
UB15 15 x 15 6, 7, 10, 12,
15, 20, 25
DXF file(14 KB)
UB17 17 x 17 DXF file(14 KB)
UB19 19 x 19 DXF file(14 KB)
UB22 22 x 22 DXF file(15 KB)
UB25 25 x 25 DXF file(15 KB)
UB28 28 x 28 DXF file(15 KB)
UB30 30 x 30 DXF file(16 KB)
UB32 32 x 32 DXF file(16 KB)
UB35 35 x 35 DXF file(16 KB)
UB38 38 x 38 DXF file(16 KB)
UB40 40 x 40 DXF file(17 KB)
UB42 42 x 42 6, 7, 8, 9, 10,
12, 15, 20, 25
DXF file(17 KB)
UB45 45 x 45 DXF file(17 KB)
UB48 48 x 48 DXF file(17 KB)
UB50 50 x 50 DXF file(18 KB)
UB52 52 x 52 DXF file(18 KB)
UB54 54 x 54 DXF file(18 KB)
UB60 60 x 60 DXF file(19 KB)
UB70 70 x 70 15, 20, 25, 30 DXF file(21 KB)
UB80 80 x 80 DXF file(22 KB)
UB90 90 x 90 DXF file(25 KB)
UB100 100 x 100 DXF file(24 KB)
UB2040 20 x 40 6, 7, 10, 12,
15, 20, 25
DXF file(17 KB)
UB4020 40 x 20 DXF file(17 KB)
UB3040 30 x 40 DXF file(17 KB)
UB4030 40 x 30 DXF file(17 KB)
UB4060 40 x 60 6, 7, 8, 9, 10,
12, 15, 20, 25
DXF file(17 KB)
UB6040 60 x 40 DXF file(17 KB)
UB5070
50 x 70
8, 10, 12,
15, 20, 25
DXF file(15KB)
UB7050
70 x 50
DXF file(15KB)
UB12060 120 x 60 15, 20, 25, 30 DXF file(22 KB)
UB13070 130 x 70 DXF file(24 KB)
