Measurement Apparatus and Method
The thermal performance for forced convection are measured as shown Figure 1, 2.

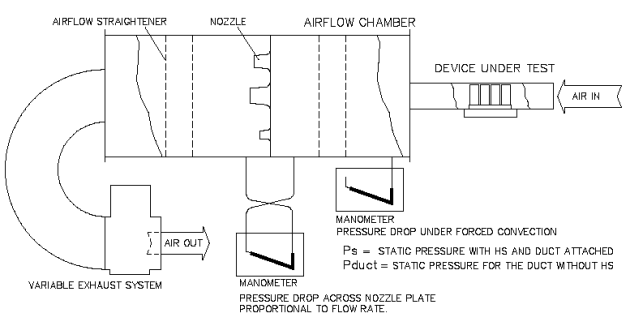

Figure 1: The Overall Experimental Setup

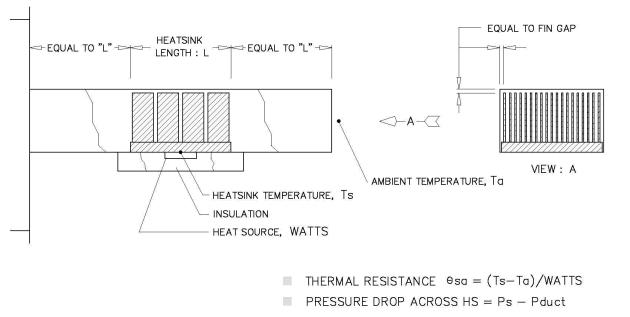

Figure 2: Duct Dimensions, Experimental Setup
- Airflow test chamber .The chamber, manufactured by Airflow Measurement
Systems, is designed in accordance with AMCA 210-85 standards.
- Please see each test condition for Heater Size
- A 1.4mm hole at the center of the test heat sink is made, and a thermocouple is
inserted to the heater. A small amount of thermal grease is applied evenly
between heater and heat sink base. Typically, data measurements are taken
multiple times.
Reference:
- Patel, C., Belady C., "Modeling and Metrology in High Performance Heat Sink Design", Porceedings of the
47th Electronic Components and
Technology Conference, IEEE, P.296, San Jose, California, 1997.
- AMCA 210-85
Measurement Apparatus & Condition for Active Heat Sink(Fan Heat Sink)

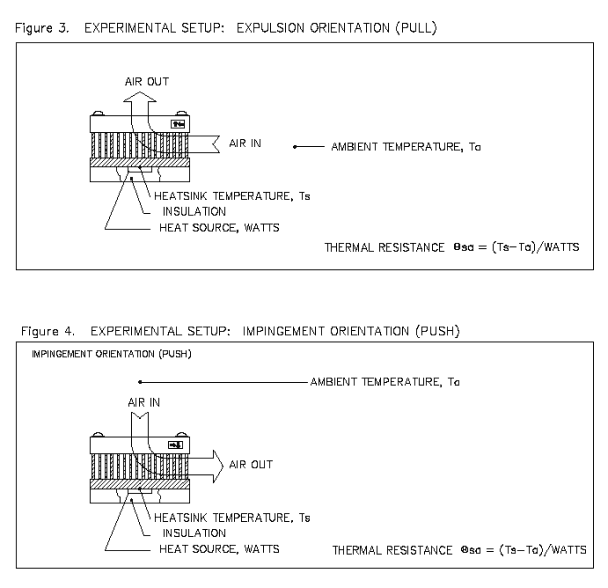

The thermal performance for active heat sink are measured as shown Figure 3,4.
- Please see each test condition for Heater Size
- A 1.4mm hole at the center of the test heat sink is made, and a thermocouple is
inserted to the heater. A small amount of thermal grease is applied evenly
between heater and heat sink base. Typically, data measurements are taken
multiple times.
Back to top
Measurement Apparatus & Condition for Natural Convection(Zero air flow)

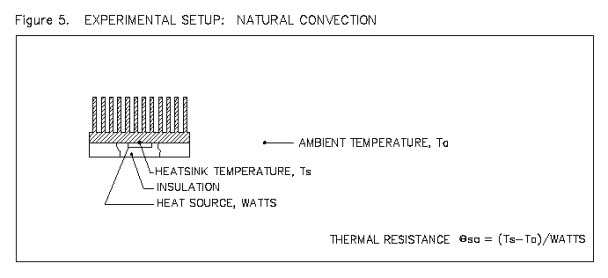

The thermal performance for natural convection are measured as shown Figure 5.
- Please see each test condition for Heater Size
- A 1.4mm hole at the center of the test heat sink is made, and a thermocouple is
inserted to the heater. A small amount of thermal grease is applied evenly
between heater and heat sink base. Typically, data measurements are taken
multiple times.
