LPD12080

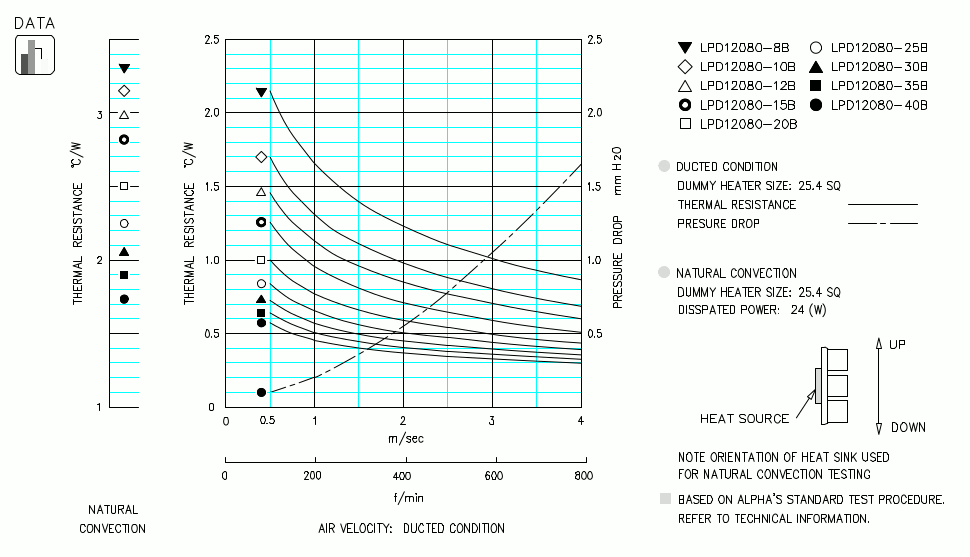

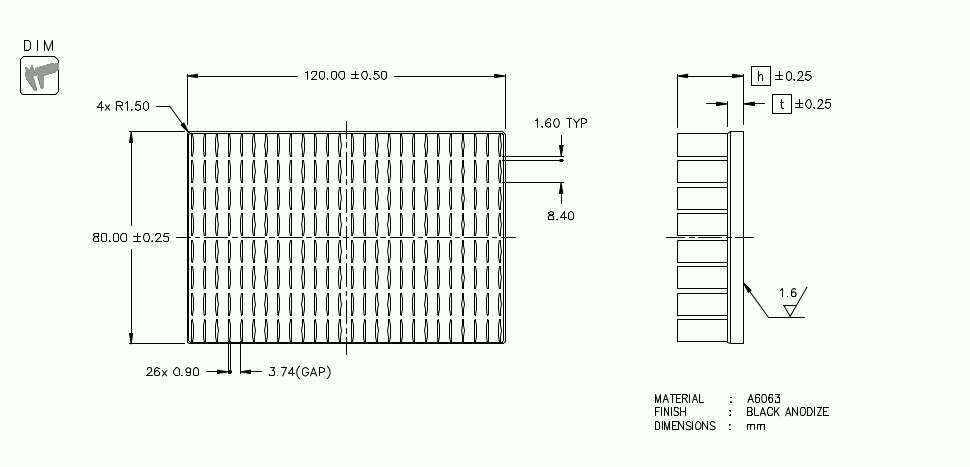

LPD12080 SPECIFICATION & THERMAL DATA
| Model | Height h (mm) |
Base t (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|---|
| 8 | 4.0 | 116.6 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
|
| 10 | 123.2 | STEP | IGES | |||||
| 12 | 5.0 | 152.5 | STEP | IGES | ||||
| 15 | 6.0 | 185.0 | STEP | IGES | ||||
| 20 | 201.6 | STEP | IGES | |||||
| 25 | 218.2 | STEP | IGES | |||||
| 30 | 234.7 | STEP | IGES | |||||
| 35 | 251.3 | STEP | IGES | |||||
| 40 | 267.9 | STEP | IGES | |||||
|
Select Height
