LPD25

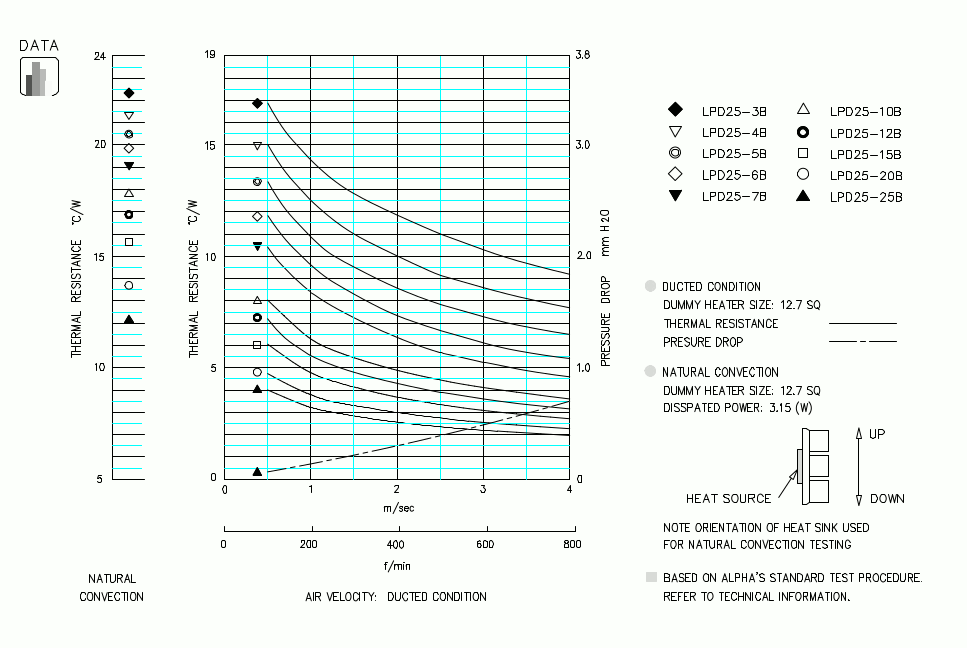

LPD25 SPECIFICATION & THERMAL DATA
| Model | Height h (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|
| 3 | 4.1 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
|
| 4 | 4.3 | STEP | IGES | ||||
| 5 | 4.5 | STEP | IGES | ||||
| 6 | 4.7 | STEP | IGES | ||||
| 7 | 4.9 | STEP | IGES | ||||
| 10 | 5.5 | STEP | IGES | ||||
| 12 | 5.9 | STEP | IGES | ||||
| 15 | 6.5 | STEP | IGES | ||||
| 20 | 7.5 | STEP | IGES | ||||
| 25 | 8.5 | STEP | IGES | ||||
|
