LPD5035

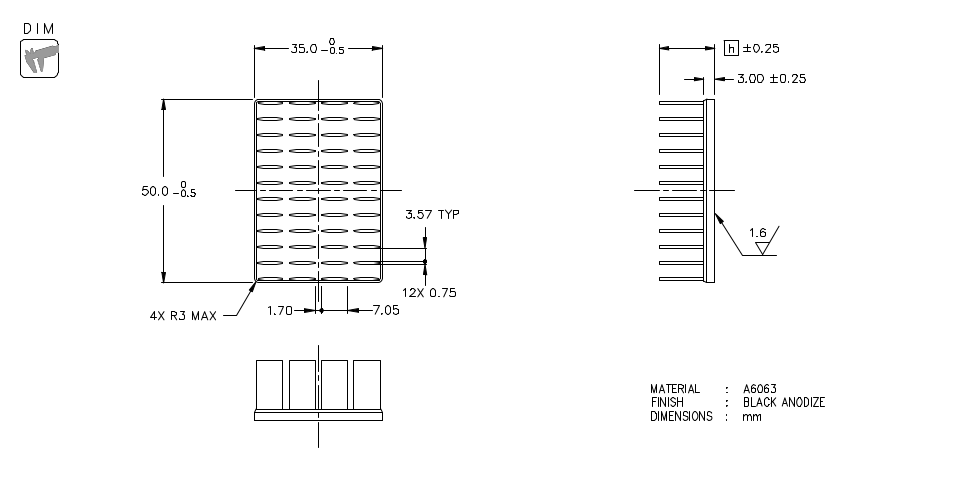

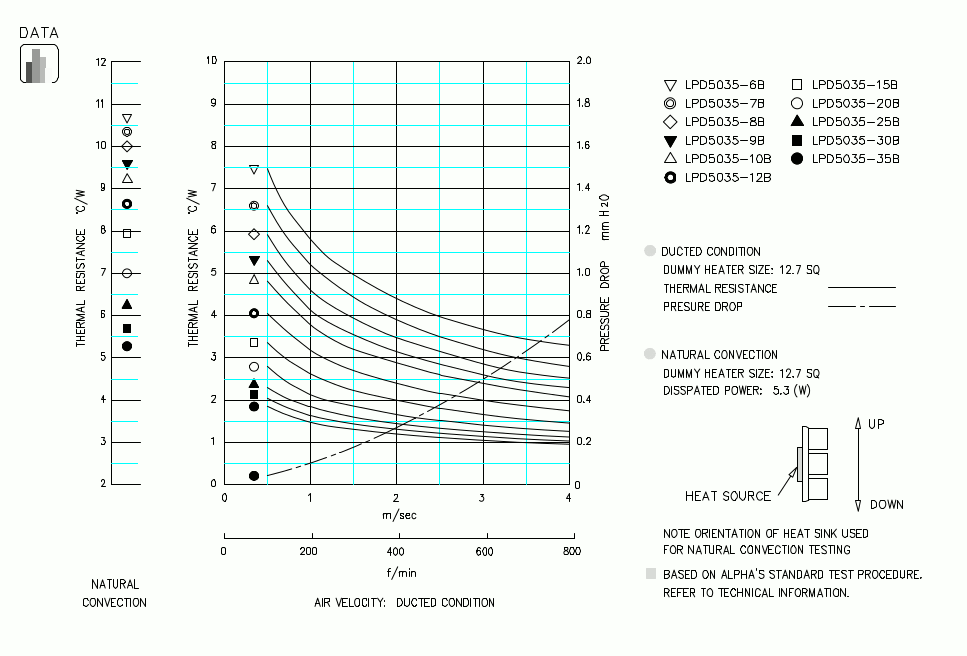

LPD5035 SPECIFICATION & THERMAL DATA
| Model | Height h (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|
| 6 | 15.5 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
|
| 7 | 16.1 | STEP | IGES | ||||
| 8 | 16.6 | STEP | IGES | ||||
| 9 | 17.2 | STEP | IGES | ||||
| 10 | 17.7 | STEP | IGES | ||||
| 12 | 18.8 | STEP | IGES | ||||
| 15 | 20.5 | STEP | IGES | ||||
| 20 | 23.2 | STEP | IGES | ||||
| 25 | 26.0 | STEP | IGES | ||||
| 30 | 28.8 | STEP | IGES | ||||
| 35 | 31.5 | STEP | IGES | ||||
|
Select Height
