LPD6040

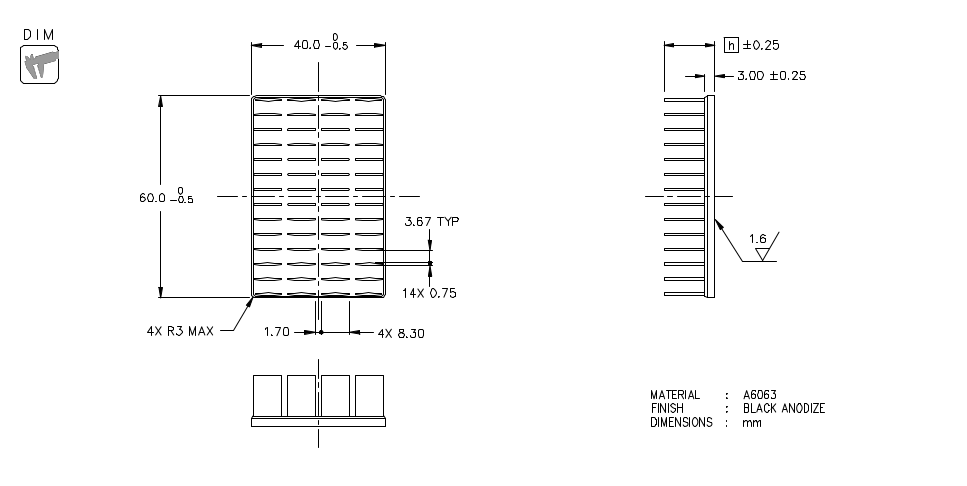

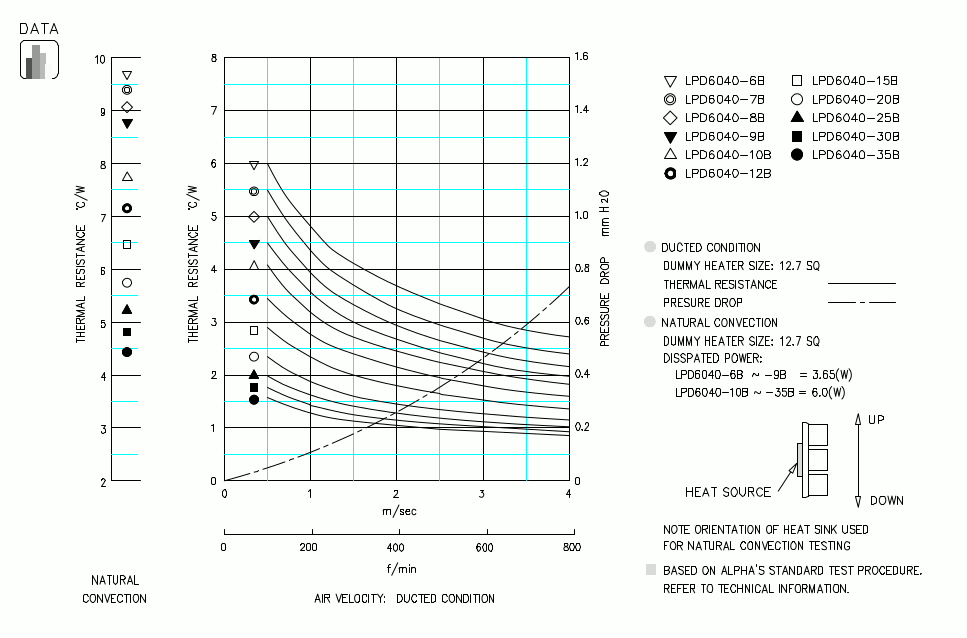

LPD6040 SPECIFICATION & THERMAL DATA
| Model | Height h (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|
| 6 | 21.6 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
|
| 7 | 22.5 | STEP | IGES | ||||
| 8 | 23.3 | STEP | IGES | ||||
| 9 | 24.1 | STEP | IGES | ||||
| 10 | 24.9 | STEP | IGES | ||||
| 12 | 26.5 | STEP | IGES | ||||
| 15 | 29.0 | STEP | IGES | ||||
| 20 | 33.1 | STEP | IGES | ||||
| 25 | 37.1 | STEP | IGES | ||||
| 30 | 41.2 | STEP | IGES | ||||
| 35 | 45.3 | STEP | IGES | ||||
|
Select Height
{{ITEMNAME}}
|
{{weight_heightchange}}
|
||||||
