LPD6080

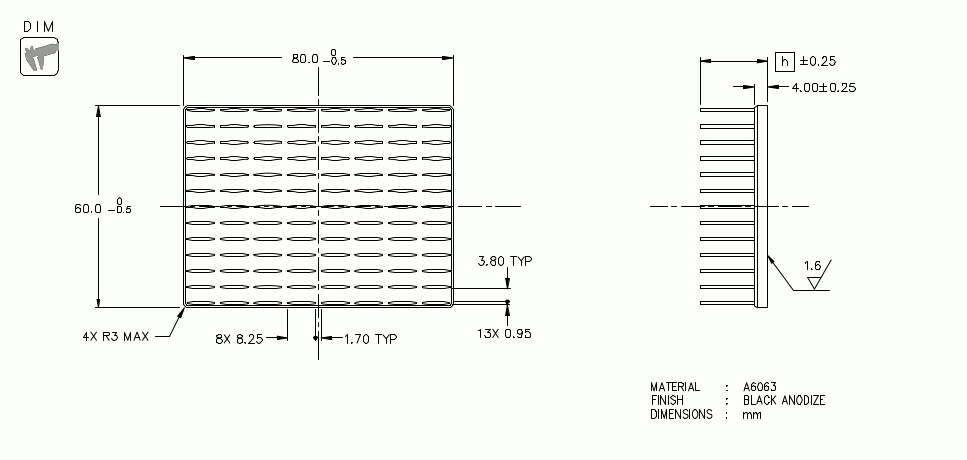

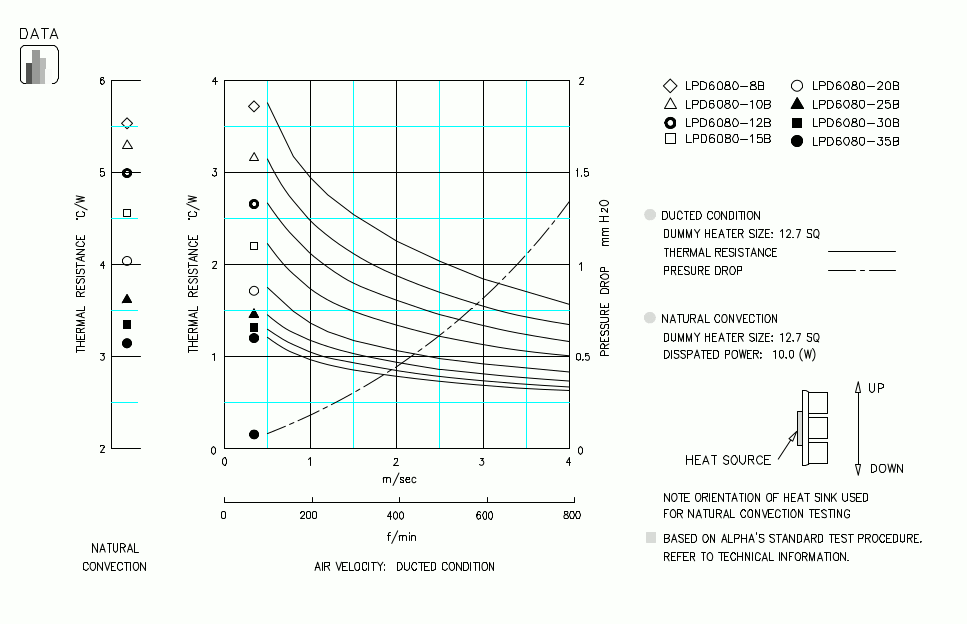

LPD6080 Specification & Thermal Data
| Model | Height h (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|
| 8 | 58.2 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
|
| 10 | 61.6 | STEP | IGES | ||||
| 12 | 65.0 | STEP | IGES | ||||
| 15 | 70.1 | STEP | IGES | ||||
| 20 | 78.6 | STEP | IGES | ||||
| 25 | 87.1 | STEP | IGES | ||||
| 30 | 95.6 | STEP | IGES | ||||
| 35 | 104.1 | STEP | IGES | ||||
|
Select Height
{{ITEMNAME}}
|
{{weight_heightchange}}
|
||||||
