LPD60

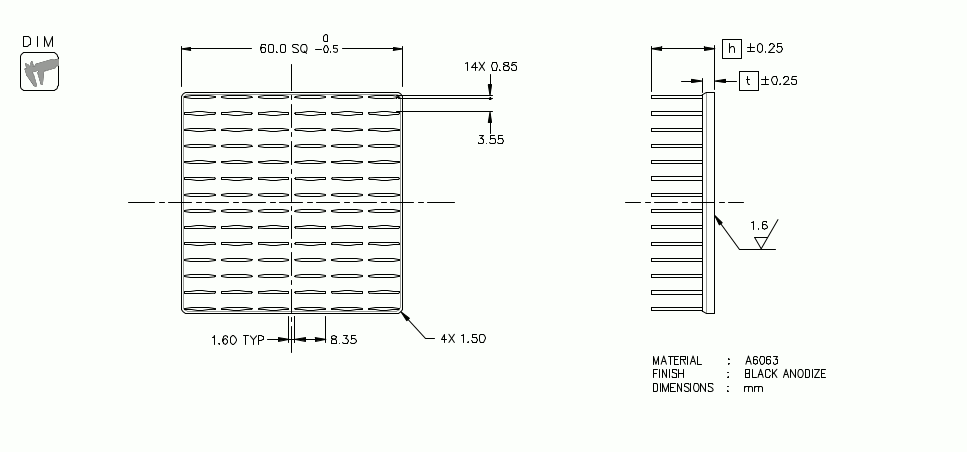

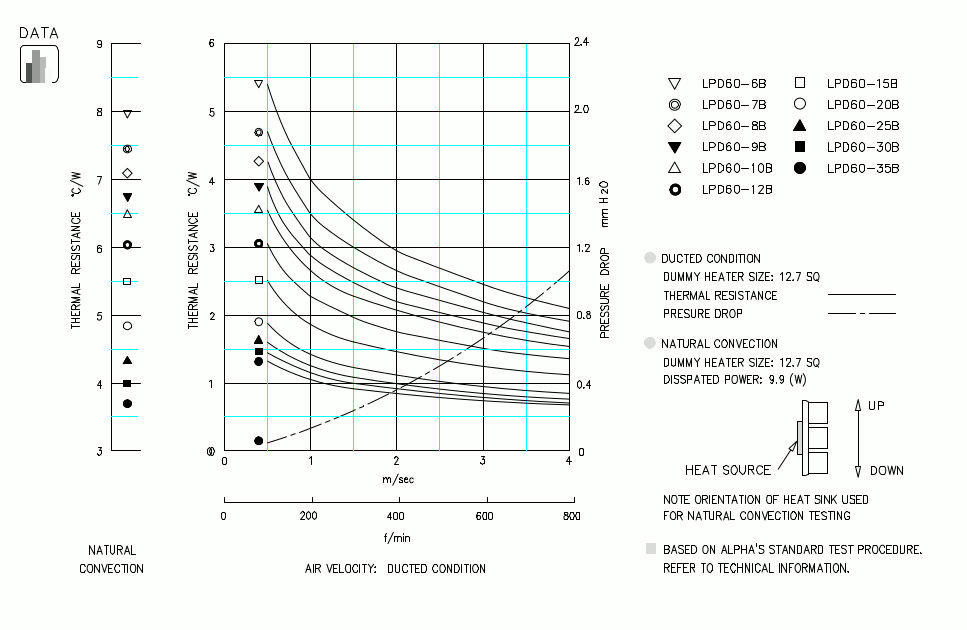

LPD60 SPECIFICATION & THERMAL DATA
| Model | Height h (mm) |
Base t (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|---|
| 6 | 3.0 | 33.1 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
|
| 7 | 35.0 | STEP | IGES | |||||
| 8 | 36.9 | STEP | IGES | |||||
| 9 | 37.4 | STEP | IGES | |||||
| 10 | 4.0 | 45.6 | STEP | IGES | ||||
| 12 | 47.9 | STEP | IGES | |||||
| 15 | 51.4 | STEP | IGES | |||||
| 20 | 57.2 | STEP | IGES | |||||
| 25 | 65.0 | STEP | IGES | |||||
| 30 | 71.3 | STEP | IGES | |||||
| 35 | 77.5 | STEP | IGES | |||||
| 40 | 86.7 | STEP | IGES | |||||
|
Select Height
{{ITEMNAME}}
|
---
{{baseT_heightchange}}
|
{{weight_heightchange}}
|
||||||
